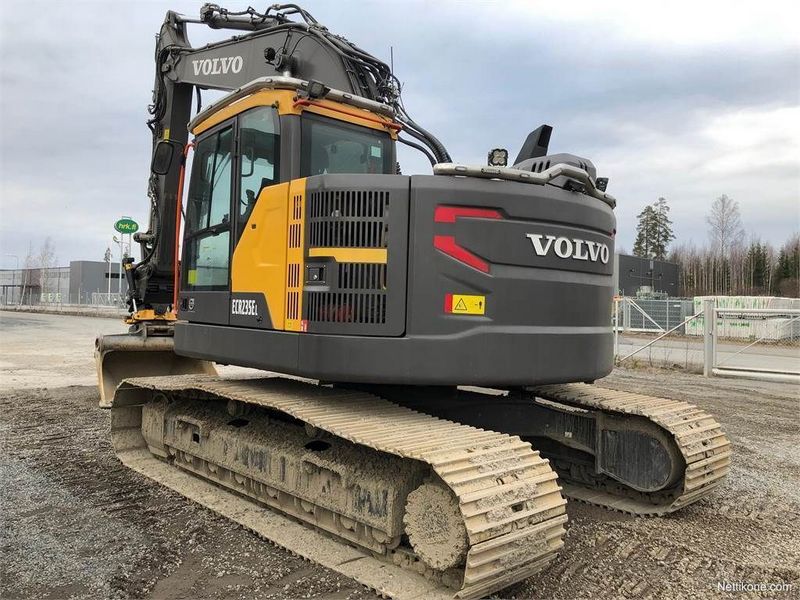

Volvo ECR235E
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 34.78 ft in (10600 mm) |
| Max Vertical Wall Digging Depth | 17.13 ft in (5220 mm) |
| Max Digging Depth | 20.84 ft in (6350 mm) |
| Min.Front Swing Radius | 7.86 ft in (2395 mm) |
| Max.Dumping Height | 24.81 ft in (7560 mm) |
| Boom/Stick Option (Hex) 1 | Mono Boom - 5.7 m, 18.8 ft in / Arm - 2.5 m, 8.2 ft in |
| Max Digging Reach | 31.21 ft in (9510 mm) |
| Max Digging Reach On Ground | 30.65 ft in (9340 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 30.89 ft in (9415 mm) |
| Max Vertical Wall Digging Depth | 14.19 ft in (4325 mm) |
| Max Digging Depth | 18.15 ft in (5530 mm) |
| Min.Front Swing Radius | 6.99 ft in (2130 mm) |
| Max.Dumping Height | 22.56 ft in (6875 mm) |
| Max Digging Reach On Ground | 26.96 ft in (8215 mm) |
| Boom/Stick Option (Hex) 2 | Mono Boom - 5.7 m, 18.8 ft in / Arm - 2.9 m, 9.6 ft in |
| Max Digging Reach | 27.43 ft in (8360 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 36.59 ft in (11150 mm) |
| Max Vertical Wall Digging Depth | 16.11 ft in (4910 mm) |
| Max Digging Depth | 19.53 ft in (5950 mm) |
| Max.Dumping Height | 26.56 ft in (8095 mm) |
| Boom/Stick Option (Hex) 3 | 2-piece Boom - 5.57 m, 18.3 ft in / Arm - 2.5 m, 8.2 ft in |
| Max Digging Reach | 31.8 ft in (9690 mm) |
| Max Digging Reach On Ground | 31.7 ft in (9660 mm) |
| Min.Front Swing Radius | 7.34 ft in (2235 mm) |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 37.78 ft in (11515 mm) |
| Max Digging Depth | 20.85 ft in (6355 mm) |
| Max.Dumping Height | 27.76 ft in (8460 mm) |
| Max Digging Reach On Ground | 32.58 ft in (9930 mm) |
| Max Digging Reach | 33.09 ft in (10085 mm) |
| Min.Front Swing Radius | 7.09 ft in (2160 mm) |
| Boom/Stick Option (Hex) 4 | 2-piece Boom - 5.57 m, 18.3 ft in / Arm - 2.9 m, 9.6 ft in |
| Max Vertical Wall Dig Depth | 17.48 ft in (5325 mm) |
Dimensions
| Tail Swing Radius | 5.94 ft in (1810 mm) |
| Counterweight Clearance | 3.37 ft in (1025 mm) |
| Overall Length | 29.83 ft in (9090 mm) |
| Track Length | 175.6 in (4460 mm) |
| Overall Height (To Top Of Cab) | 9.73 ft in (2965 mm) |
| Overall Width | 121.66 in (3090 mm) |
| Overall Width -Upper Structure | 9.81 ft in (2990 mm) |
| Shoe Width | 2.3 ft in (700 mm) |
| Ground Clearance (Minimum) | 1.51 ft in (460 mm) |
| Overall Height (To Top Of Boom) | 10.93 ft in (3330 mm) |
Undercarriage
| Number Of Top Rollers Per Side | 2 x 2 |
| Link Pitch | 7.49 in (190 mm) |
| Shoe Width (Standard) | 27.56 in (700 mm) |
| Number Of Bottom Rollers Per Side | 2 x 8 |
| Shoe Width – Rubber | 23.63 in (600 mm) |
Electrical System
| Alternator | 28/110 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 12 / 150 V/Ah |
| Starter Motor | 132 V/KW |
Swing System
| Max - Slew Speed | 12 rpm |
| Max - Slew Torque | 61220 lb ft (83003.2 Nm) |
| Swing Reduction | 7 L, 2 gal |
Engine
| Max Power | 1800 rpm |
| Number Of Cylinders | 6 |
| Rated Engine Speed | 1350 rpm |
| Engine Model | Volvo D6J |
| Net Power | 171.7 hp (128 kw) |
| Gross Power | 173 hp (129 kw) |
| Max Torque | 627 lb ft (850 Nm) |
| Displacement | 347.9 cu in (5.7 L) |
| Bore | 3.9 in (98 mm) |
| Stroke | 5 in (126 mm) |
Capacities
| Travel Reduction | 2.7 gal (10 L) |
| Fuel Tank | 75.6 gal (286 L) |
| Hydraulic Tank | 33.3 gal (126 L) |
| Diesel Exhaust Fluid (Def) Tank | 6.6 gal (24.9 L) |
| Hydraulic System | 74 gal (280 L) |
| Engine Oil | 6.7 gal (25 L) |
| Engine Coolant | 8 gal (30 L) |
Performance
| Gradeability | 35 % |
| Travel Speed | 3.5 mph (5.5 km/h) |
| Drawbar Pull Force | 46962.6 lb (208.9 kN) |
Hydraulic System
| Standard Pressure | 4980 psi (34335.9 kPa) |
| Power Boost | 5260 psi (36266.4 kPa) |
| Slew Circuit | 4050 psi (27923.8 kPa) |
| Main Pump - Maximum Flow | 109.4 gal/min (414 L/min) |
| Pilot Pump - Maximum Flow | 4.8 gal/min (18 L/min) |
| Travel Circuit | 4980 psi (34335.9 kPa) |
| Pilot Circuit | 570 psi (3930.1 kPa) |
