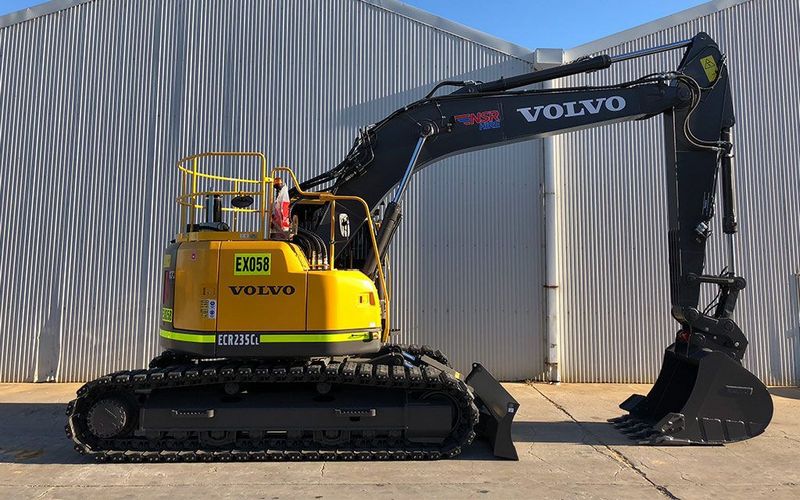

Volvo ECR235CL
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 29.79 ft in (9080 mm) |
| Shipping Height Of Unit | 10.62 ft in (3235 mm) |
| Max Cutting Height | 34.78 ft in (10600 mm) |
| Max Loading Height | 24.84 ft in (7570 mm) |
| Max Reach Along Ground | 30.65 ft in (9340 mm) |
| Max Vertical Wall Digging Depth | 16.75 ft in (5105 mm) |
| Max Digging Depth | 20.84 ft in (6350 mm) |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5700mm)/Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 29.48 ft in (8985 mm) |
| Max Cutting Height | 35.82 ft in (10915 mm) |
| Shipping Height Of Unit | 10.11 ft in (3080 mm) |
| Max Loading Height | 25.86 ft in (7880 mm) |
| Max Reach Along Ground | 31.91 ft in (9725 mm) |
| Max Vertical Wall Digging Depth | 18.79 ft in (5725 mm) |
| Max Digging Depth | 22.15 ft in (6750 mm) |
| Boom/Stick Option (Hex) 2 | Boom 18'8" (5700mm)/Stick 9'6" (2900mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.98 ft in (3040 mm) |
| Width To Outside Of Tracks | 10.14 ft in (3090 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 5.52 ft in (1680 mm) |
| Removal Counterweight Clearance | 3.37 ft in (1025 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Shoes Per Side | 49 |
| Drawbar Pull | 44980 lb (200.09 kN) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Ground Pressure | 7.7 psi (53.09 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D6E EAE3 |
| Net Power | 147 hp (109.7 kw) |
| Gross Power | 165 hp (123.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 546 lb ft (740.3 Nm) |
| Displacement | 348 cu in (5.8 L) |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1350 rpm |
Operational
| Operating Weight | 56070 lb (25433 kg) |
| Fuel Capacity | 85.9 gal (325 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.5 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 106 gal/min (401.3 L/min) |
Swing Mechanism
| Swing Speed | 10.8 rpm |
| Swing Torque | lb ft (82500 Nm) |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.2 m3) |
