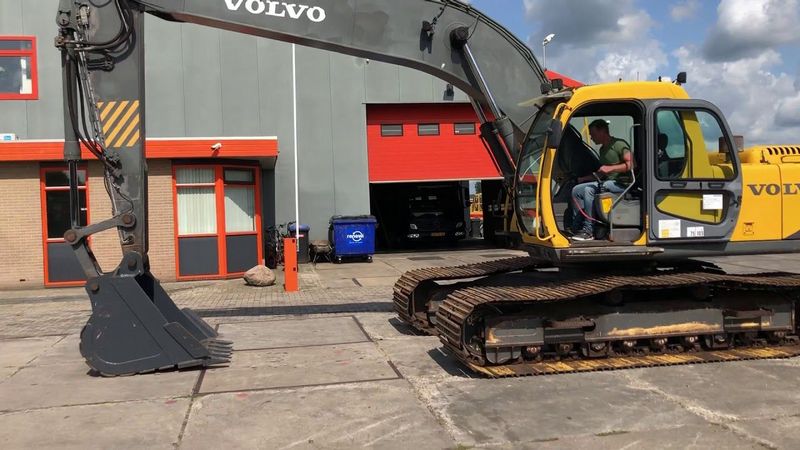

Volvo EC210LC
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.19 ft in (9810 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 28.97 ft in (8830 mm) |
| Max Loading Height | 20.05 ft in (6110 mm) |
| Max Reach Along Ground | 28.68 ft in (8740 mm) |
| Max Vertical Wall Digging Depth | 13.88 ft in (4230 mm) |
| Max Digging Depth | 18.48 ft in (5630 mm) |
| Boom/Stick Option (Hex) 1 | Monobloc Boom 5700mm / Stick 1800mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.99 ft in (9750 mm) |
| Max Cutting Height | 30.29 ft in (9230 mm) |
| Shipping Height Of Unit | 10.24 ft in (3120 mm) |
| Max Loading Height | 21.04 ft in (6410 mm) |
| Max Reach Along Ground | 30.29 ft in (9230 mm) |
| Max Vertical Wall Digging Depth | 17.62 ft in (5370 mm) |
| Max Digging Depth | 20.12 ft in (6130 mm) |
| Boom/Stick Option (Hex) 2 | Monobloc Boom 5700mm / Stick 2300mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31.73 ft in (9670 mm) |
| Max Cutting Height | 31.57 ft in (9620 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Shipping Height Of Unit | 11.78 ft in (3590 mm) |
| Max Reach Along Ground | 34.81 ft in (10610 mm) |
| Max Vertical Wall Digging Depth | 21.56 ft in (6570 mm) |
| Max Digging Depth | 25.37 ft in (7730 mm) |
| Boom/Stick Option (Hex) 3 | Monobloc Boom 5700mm / Stick 3900mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 31.73 ft in (9670 mm) |
| Shipping Height Of Unit | 9.98 ft in (3040 mm) |
| Max Cutting Height | 32.49 ft in (9900 mm) |
| Max Loading Height | 23 ft in (7010 mm) |
| Max Reach Along Ground | 28.35 ft in (8640 mm) |
| Max Digging Depth | 17.13 ft in (5220 mm) |
| Boom/Stick Option (Hex) 4 | 2-piece Boom 5570mm / Stick 1800mm |
| Max Vertical Wall Dig Depth | 13.1 ft in (3990 mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 31.53 ft in (9610 mm) |
| Shipping Height Of Unit | 9.98 ft in (3040 mm) |
| Max Cutting Height | 33.9 ft in (10330 mm) |
| Max Loading Height | 24.28 ft in (7400 mm) |
| Max Reach Along Ground | 29.96 ft in (9130 mm) |
| Max Digging Depth | 18.77 ft in (5720 mm) |
| Max Vertical Wall Dig Depth | 15.65 ft in (4770 mm) |
| Boom/Stick Option (Hex) 5 | 2-piece Boom 5570mm / Stick 2300mm |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 36.68 ft in (11180 mm) |
| Max Loading Height | 27.14 ft in (8270 mm) |
| Shipping Length Of Unit | 31.07 ft in (9470 mm) |
| Max Reach Along Ground | 34.55 ft in (10530 mm) |
| Shipping Height Of Unit | 11.91 ft in (3630 mm) |
| Max Digging Depth | 23.76 ft in (7240 mm) |
| Max Vertical Wall Dig Depth | 20.28 ft in (6180 mm) |
| Boom/Stick Option (Hex) 6 | 2-piece Boom 5570mm / Stick 3900mm |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.52 ft in (2900 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 9.36 ft in (2850 mm) |
| Removal Counterweight Clearance | 3.37 ft in (1025 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 9 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | B5.9-C |
| Gross Power | 160 hp (119.4 kw) |
| Net Power | 143 hp (106.7 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 455.9 lb ft (618 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 45194.8 lb (20500 kg) |
| Fuel Capacity | 92.5 gal (350 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.5 L) |
| Hydraulic System Fluid Capacity | 75.3 gal (285 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 105.7 gal/min (400 L/min) |
Swing Mechanism
| Swing Speed | 11.6 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.7 yd3 (1.3 m3) |
