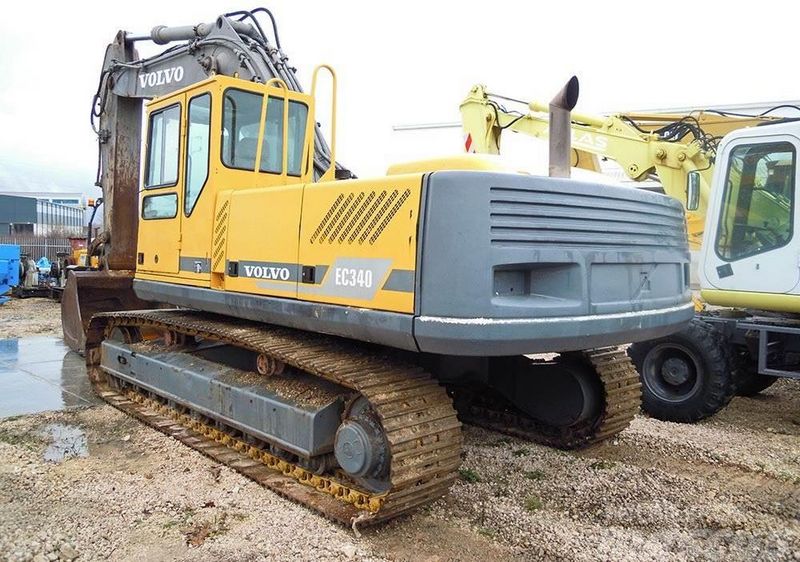

Volvo EC340
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 34.45 ft in (10500 mm) |
| Shipping Height Of Unit | 10.67 ft in (3250 mm) |
| Max Cutting Height | 34.45 ft in (10500 mm) |
| Max Loading Height | 22.97 ft in (7000 mm) |
| Max Reach Along Ground | 32.49 ft in (9900 mm) |
| Max Vertical Wall Digging Depth | 12.14 ft in (3700 mm) |
| Max Digging Depth | 20.02 ft in (6100 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6000mm / Stick 2400mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 34.45 ft in (10500 mm) |
| Max Cutting Height | 36.42 ft in (11100 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Loading Height | 24.61 ft in (7500 mm) |
| Max Reach Along Ground | 34.13 ft in (10400 mm) |
| Max Vertical Wall Digging Depth | 15.75 ft in (4800 mm) |
| Max Digging Depth | 21.66 ft in (6600 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6000mm / Stick 2900mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 34.45 ft in (10500 mm) |
| Max Cutting Height | 37.08 ft in (11300 mm) |
| Max Loading Height | 25.27 ft in (7700 mm) |
| Shipping Height Of Unit | 11.62 ft in (3540 mm) |
| Max Reach Along Ground | 35.77 ft in (10900 mm) |
| Max Vertical Wall Digging Depth | 16.74 ft in (5100 mm) |
| Max Digging Depth | 23.63 ft in (7200 mm) |
| Boom/Stick Option (Hex) 3 | Boom 6000mm / Stick 3500mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 37.08 ft in (11300 mm) |
| Shipping Height Of Unit | 10.6 ft in (3230 mm) |
| Max Cutting Height | 36.42 ft in (11100 mm) |
| Max Loading Height | 24.94 ft in (7600 mm) |
| Max Reach Along Ground | 34.78 ft in (10600 mm) |
| Max Digging Depth | 22.31 ft in (6800 mm) |
| Max Vertical Wall Dig Depth | 14.11 ft in (4300 mm) |
| Boom/Stick Option (Hex) 4 | Boom 6700mm / Stick 2400mm |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 36.75 ft in (11200 mm) |
| Shipping Height Of Unit | 11.06 ft in (3370 mm) |
| Max Cutting Height | 38.39 ft in (11700 mm) |
| Max Loading Height | 26.25 ft in (8000 mm) |
| Max Reach Along Ground | 36.75 ft in (11200 mm) |
| Max Digging Depth | 23.96 ft in (7300 mm) |
| Max Vertical Wall Dig Depth | 17.72 ft in (5400 mm) |
| Boom/Stick Option (Hex) 5 | Boom 6700mm / Stick 2900mm |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 39.05 ft in (11900 mm) |
| Max Loading Height | 27.24 ft in (8300 mm) |
| Shipping Length Of Unit | 36.75 ft in (11200 mm) |
| Max Reach Along Ground | 38.39 ft in (11700 mm) |
| Shipping Height Of Unit | 11.19 ft in (3410 mm) |
| Max Digging Depth | 25.92 ft in (7900 mm) |
| Boom/Stick Option (Hex) 6 | Boom 6700mm / Stick 3500mm |
| Max Vertical Wall Dig Depth | 18.71 ft in (5700 mm) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Width To Outside Of Tracks | 9.85 ft in (3000 mm) |
| Length Of Track On Ground | 13.78 ft in (4200 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Removal Counterweight Clearance | 3.78 ft in (1150 mm) |
Undercarriage
| Track Gauge | 7.88 ft in (2400 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 53 |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 9.23 psi (63.6 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 103 KAE |
| Net Power | 244.1 hp (182 kw) |
| Gross Power | 254.8 hp (190 kw) |
| Power Measured @ | 1700 rpm |
| Displacement | 585.9 cu in (9.6 L) |
| Aspiration | Turbocharged and Intercooled |
Operational
| Operating Weight | 77713 lb (35250 kg) |
| Fuel Capacity | 190.3 gal (720 L) |
| Cooling System Fluid Capacity | 15.4 gal (58 L) |
| Hydraulic System Fluid Capacity | 124.2 gal (470 L) |
| Engine Oil Capacity | 9.2 gal (34.5 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 6.4 gal (24 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic Pump Flow Capacity | 133.7 gal/min (506 L/min) |
Swing Mechanism
| Swing Speed | 8.6 rpm |
Buckets
| Reference Bucket Capacity | 2.4 yd3 (1.8 m3) |
