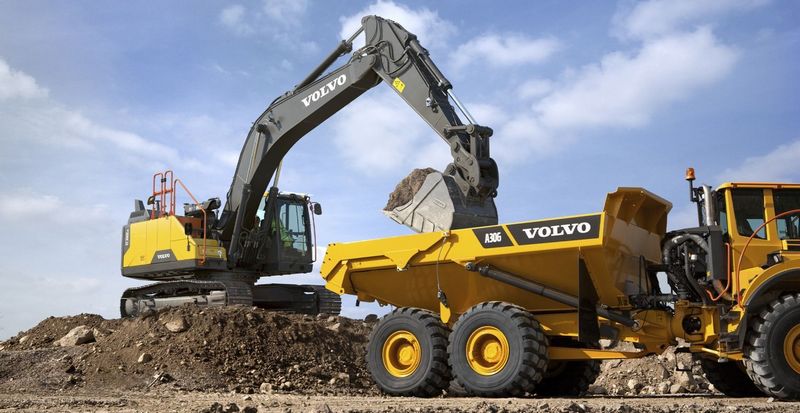

Volvo EC300E
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 21.92 ft in (6680 mm) |
| Max Vertical Wall Digging Depth | 31.37 ft in (9560 mm) |
| Max Digging Depth | 22.45 ft in (6840 mm) |
| Max.Dumping Height | 17.46 ft in (5320 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 6.2 m, 20.4 ft in / Arm - 2.55 m, 8.4 ft in |
| Max Digging Reach On Ground | 32.71 ft in (9970 mm) |
| Max Digging Reach | 33.4 ft in (10180 mm) |
| Min.Front Swing Radius | 13.85 ft in (4220 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 23.1 ft in (7040 mm) |
| Max Vertical Wall Digging Depth | 32.75 ft in (9980 mm) |
| Max Digging Depth | 24.09 ft in (7340 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 6.2 m, 20.4 ft in / Arm - 3.05 m,10.0 ft in |
| Max Digging Reach | 35.14 ft in (10710 mm) |
| Max Digging Reach On Ground | 34.52 ft in (10520 mm) |
| Max.Dumping Height | 19.95 ft in (6080 mm) |
| Min.Front Swing Radius | 13.72 ft in (4180 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 24.05 ft in (7330 mm) |
| Max Vertical Wall Digging Depth | 33.67 ft in (10260 mm) |
| Max Digging Depth | 26.22 ft in (7990 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 6.2 m, 20.4 ft in / Arm - 3.7 m, 12.2 ft in |
| Max Digging Reach | 37.11 ft in (11310 mm) |
| Max Digging Reach On Ground | 36.52 ft in (11130 mm) |
| Max.Dumping Height | 21.92 ft in (6680 mm) |
| Min.Front Swing Radius | 13.92 ft in (4240 mm) |
Dimensions
| Tail Swing Radius | 10.24 ft in (3120 mm) |
| Counterweight Clearance | 3.61 ft in (1100 mm) |
| Track Length | 191.74 in (4870 mm) |
| Shoe Width | 1.97 ft in (600 mm) |
| Ground Clearance (Minimum) | 1.58 ft in (480 mm) |
| Overall Height (To Top Of Boom) | 11.42 ft in (3480 mm) |
| Overall Height (To Top Of Cab) | 10.21 ft in (3110 mm) |
| Overall Length | 34.81 ft in (10610 mm) |
| Overall Width | 125.6 in (3190 mm) |
| Overall Width -Upper Structure | 9.49 ft in (2890 mm) |
Undercarriage
| Number Of Bottom Rollers Per Side | 2 x 9 |
| Link Pitch | 8 in (203 mm) |
| Shoe Width (Standard) | 27.56 in (700 mm) |
| Number Of Top Rollers Per Side | 2 x 2 |
Electrical System
| Alternator | 28/80 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 |
| Battery | 200 (Ah) |
Swing System
| Max - Slew Speed | 10.7 rpm |
| Max - Slew Torque | 81790 lb ft (110892.4 Nm) |
| Swing Reduction | 6.1 L, 1.6 gal |
Engine
| Max Power | 1800 rpm |
| Number Of Cylinders | 6 |
| Engine Model | Volvo D8J |
| Net Power | 240.1 hp (179 kw) |
| Gross Power | 241.4 hp (180 kw) |
| Max Torque | 673.4 lb ft (913 Nm) |
| Displacement | 476 cu in (7.8 L) |
| Bore | 4.4 in (110 mm) |
| Stroke | 5.4 in (136 mm) |
Capacities
| Travel Reduction | 3.2 gal (12 L) |
| Fuel Tank | 124.2 gal (470 L) |
| Hydraulic Tank | 54.7 gal (207 L) |
| Diesel Exhaust Fluid (Def) Tank | 14.1 gal (53 L) |
| Hydraulic System | 105.7 gal (400 L) |
| Engine Oil | 8.5 gal (32 L) |
| Engine Coolant | 10.9 gal (41 L) |
Performance
| Gradeability | 35 % |
| Travel Speed (Maximum) | 3.4 mph (5.4 km/h) |
| Drawbar Pull Force | 55752.7 lb (248 kN) |
Hydraulic System
| Slew Circuit | 4050 psi (27923.8 kPa) |
| Main Pump - Maximum Flow | 139 gal/min (526 L/min) |
| Pilot Pump - Maximum Flow | 4.8 gal/min (18 L/min) |
| Implement | 5260 psi (36266.4 kPa) |
| Travel Circuit | 5260 psi (36266.4 kPa) |
| Pilot Circuit | 570 psi (3930.1 kPa) |
