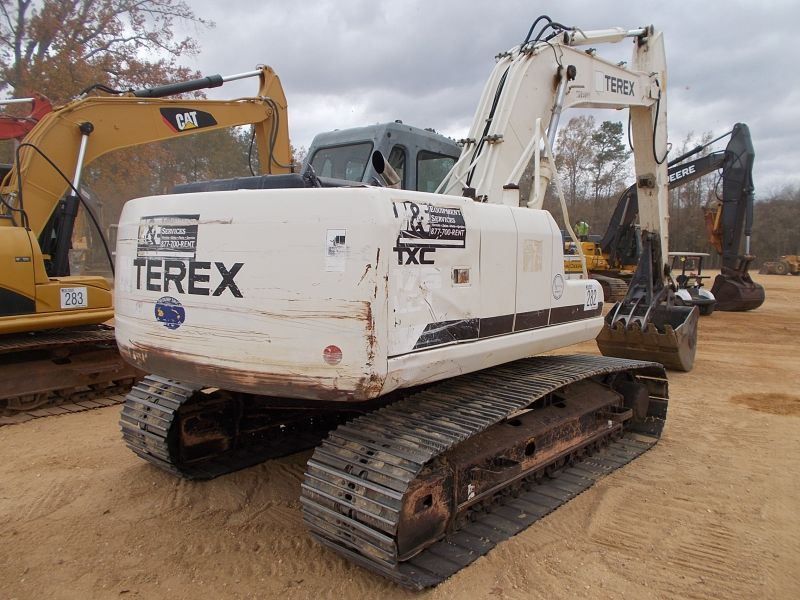

Terex TXC175LC-1
Browse All Terex or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.65 ft in (8730 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 28.94 ft in (8820 mm) |
| Max Loading Height | 19.95 ft in (6080 mm) |
| Max Reach Along Ground | 29.2 ft in (8900 mm) |
| Max Vertical Wall Digging Depth | 17.16 ft in (5230 mm) |
| Max Digging Depth | 20.41 ft in (6220 mm) |
| Boom/Stick Option (Hex) 1 | 16'11' (5200mm) boom w/ stick 8'6'' (2600mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 29.5 ft in (8990 mm) |
| Max Loading Height | 20.51 ft in (6250 mm) |
| Max Reach Along Ground | 30.68 ft in (9350 mm) |
| Max Vertical Wall Digging Depth | 18.71 ft in (5700 mm) |
| Max Digging Depth | 22.05 ft in (6720 mm) |
| Boom/Stick Option (Hex) 2 | 16'11' (5200mm) boom w/ stick 10'2'' (3100mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.62 ft in (2930 mm) |
| Width To Outside Of Tracks | 9.19 ft in (2800 mm) |
| Length Of Track On Ground | 10.6 ft in (3230 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
| Removal Counterweight Clearance | 3.42 ft in (1040 mm) |
Undercarriage
| Track Gauge | 7.22 ft in (2200 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.05 mph (4.91 km/h) |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 5.8 psi (39.99 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2253 |
| Engine Model | DE58TIS |
| Net Power | 118 hp (88 kw) |
| Power Measured @ | 1950 rpm |
| Max Torque | 333 lb ft (451.5 Nm) |
| Displacement | 353 cu in (5.8 L) |
| Aspiration | Turbocharged, air to air intercooled |
| Torque Measured @ | 1450 rpm |
Operational
| Operating Weight | 38360 lb (17399.9 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Hydraulic System Relief Valve Pressure | 4690 psi (32336.4 kPa) |
| Hydraulic Pump Flow Capacity | 80.4 gal/min (304 L/min) |
Swing Mechanism
| Swing Speed | 11.7 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.3 yd3 (1 m3) |
