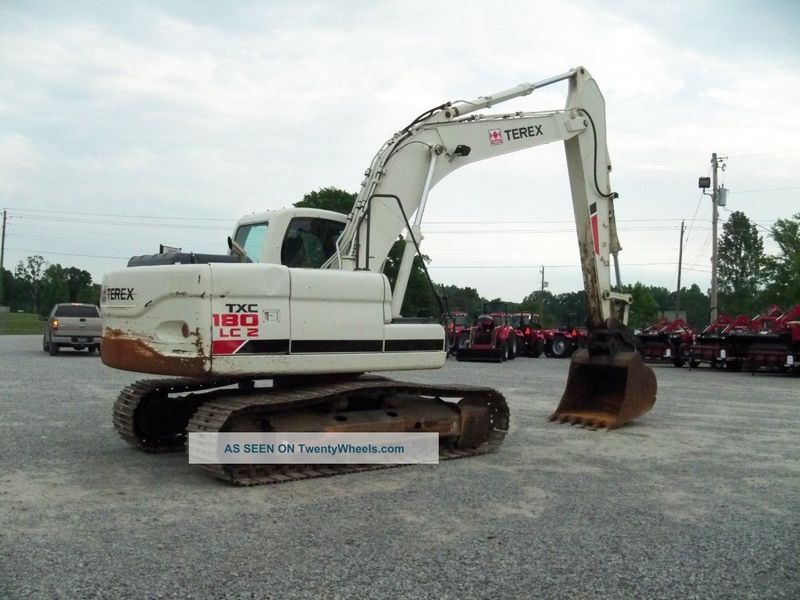

Terex 180LC-2
Browse All Terex or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 29.37 ft in (8950 mm) |
| Max Loading Height | 20.54 ft in (6260 mm) |
| Max Reach Along Ground | 28.19 ft in (8590 mm) |
| Max Vertical Wall Digging Depth | 15.29 ft in (4660 mm) |
| Max Digging Depth | 18.77 ft in (5720 mm) |
| Boom/Stick Option (Hex) 1 | boom 17'1'' (5200mm) w/ stick 7'3'' (2200mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 30.12 ft in (9180 mm) |
| Max Loading Height | 21.3 ft in (6490 mm) |
| Max Reach Along Ground | 29.47 ft in (8980 mm) |
| Max Vertical Wall Digging Depth | 16.51 ft in (5030 mm) |
| Max Digging Depth | 20.08 ft in (6120 mm) |
| Boom/Stick Option (Hex) 2 | boom 17'1'' (5200mm) w/ stick 8'6'' (2600mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 29.89 ft in (9110 mm) |
| Max Loading Height | 21.3 ft in (6490 mm) |
| Max Reach Along Ground | 30.65 ft in (9340 mm) |
| Max Vertical Wall Digging Depth | 16.84 ft in (5130 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 3 | boom 17'1" (5200mm) w/ stick 10'2" (3100mm) |
Dimensions
| Height To Top Of Cab | 9.6 ft in (2925 mm) |
| Width To Outside Of Tracks | 9.19 ft in (2800 mm) |
| Length Of Track On Ground | 10.44 ft in (3180 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
| Removal Counterweight Clearance | 3.4 ft in (1035 mm) |
Undercarriage
| Shoe Size | 19.69 in (500 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 44 |
Engine
| Engine Make | 2252 |
| Engine Model | Tier III DL06 |
| Gross Power | 120 hp (89.5 kw) |
| Net Power | 118 hp (88 kw) |
| Max Torque | 347 lb ft (470.5 Nm) |
| Aspiration | Turbocharged air to water intercooled |
| Displacement | 359 cu in (5.9 L) |
Operational
| Operating Weight | 38933 lb (17659.8 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 49.2 gal (186 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Swing Drive Fluid Capacity | 1.1 gal (3.8 L) |
| Alternator Supplied Amperage | 200 amps |
| Hydraulic System Relief Valve Pressure | 4699 psi (32398.5 kPa) |
| Hydraulic Pump Flow Capacity | 80.4 gal/min (304 L/min) |
Swing Mechanism
| Swing Speed | 10.7 rpm |
