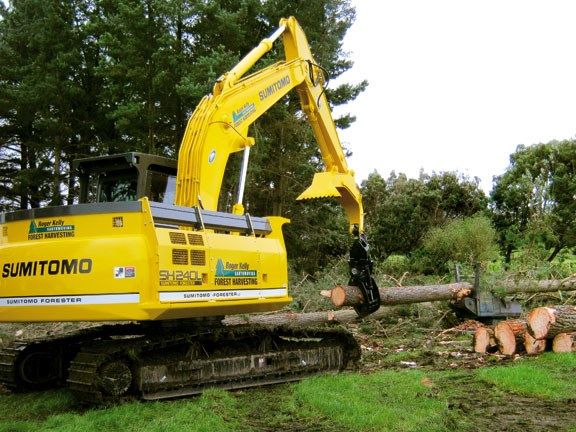

Sumitomo SH240-5
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.58 ft in (9930 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 33.73 ft in (10280 mm) |
| Max Vertical Wall Digging Depth | 20.15 ft in (6140 mm) |
| Max Digging Depth | 22.64 ft in (6900 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 12.6 ft in (3840 mm) |
| Tail Swing Radius | 9.68 ft in (2950 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AH-4HK1X |
| Gross Power | 177.1 hp (132 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 316.8 cu in (5.2 L) |
Operational
| Operating Weight | 53792.8 lb (24400 kg) |
| Hydraulic System Relief Valve Pressure | 5439 psi (37500 kPa) |
| Hydraulic Pump Flow Capacity | 123.7 gal/min (468 L/min) |
Buckets
| Reference Bucket Capacity | 1.4 yd3 (1 m3) |
