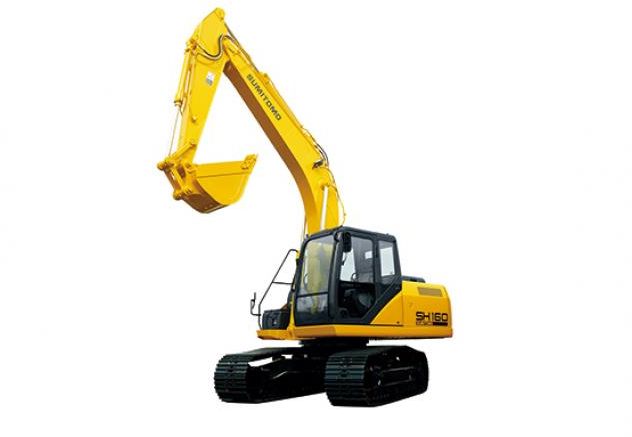

Sumitomo SH160-5
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 27.7 ft in (8440 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Loading Height | 21.69 ft in (6610 mm) |
| Max Reach Along Ground | 29.66 ft in (9040 mm) |
| Max Vertical Wall Digging Depth | 16.67 ft in (5080 mm) |
| Max Digging Depth | 19.89 ft in (6060 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 10.47 ft in (3190 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.36 mph (5.4 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | A1-4JJ1X |
| Gross Power | 119.7 hp (89.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 183.1 cu in (3 L) |
Operational
| Operating Weight | 37258.2 lb (16900 kg) |
| Hydraulic System Relief Valve Pressure | 5366.5 psi (37000 kPa) |
| Hydraulic Pump Flow Capacity | 75.1 gal/min (284 L/min) |
Buckets
| Reference Bucket Capacity | 0.9 yd3 (0.7 m3) |
