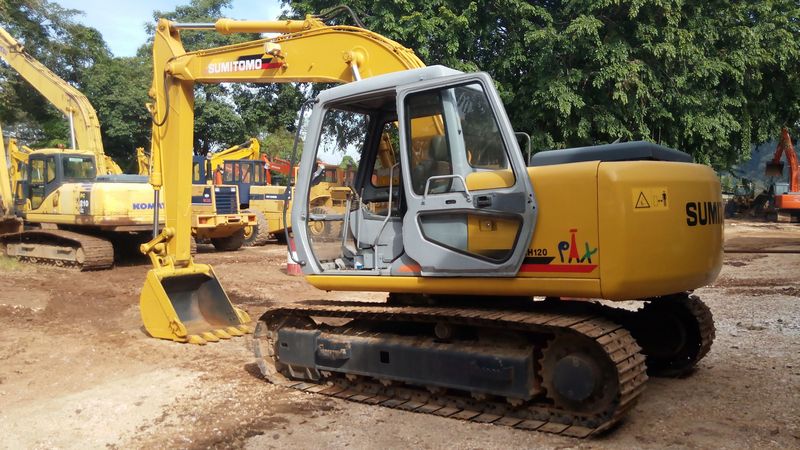

Sumitomo SH120-2
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 24.94 ft in (7600 mm) |
| Shipping Height Of Unit | 8.85 ft in (2695 mm) |
| Max Cutting Height | 28.94 ft in (8820 mm) |
| Max Loading Height | 21.1 ft in (6430 mm) |
| Max Reach Along Ground | 26.15 ft in (7970 mm) |
| Max Vertical Wall Digging Depth | 15.03 ft in (4580 mm) |
| Max Digging Depth | 16.9 ft in (5150 mm) |
| Boom/Stick Option (Hex) 1 | Boom / Stick 2100mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 24.94 ft in (7600 mm) |
| Max Cutting Height | 29.83 ft in (9090 mm) |
| Shipping Height Of Unit | 8.85 ft in (2695 mm) |
| Max Loading Height | 21.99 ft in (6700 mm) |
| Max Reach Along Ground | 27.37 ft in (8340 mm) |
| Max Vertical Wall Digging Depth | 16.34 ft in (4980 mm) |
| Max Digging Depth | 18.21 ft in (5550 mm) |
| Boom/Stick Option (Hex) 2 | Boom / Stick 2500mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 24.94 ft in (7600 mm) |
| Max Cutting Height | 30.88 ft in (9410 mm) |
| Max Loading Height | 23.04 ft in (7020 mm) |
| Shipping Height Of Unit | 8.85 ft in (2695 mm) |
| Max Reach Along Ground | 28.84 ft in (8790 mm) |
| Max Vertical Wall Digging Depth | 17.85 ft in (5440 mm) |
| Max Digging Depth | 19.85 ft in (6050 mm) |
| Boom/Stick Option (Hex) 3 | Boom / Stick 3000mm |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.85 ft in (2695 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.13 ft in (2780 mm) |
| Tail Swing Radius | 6.73 ft in (2050 mm) |
| Removal Counterweight Clearance | 2.92 ft in (890 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Number Of Track Rollers Per Side | 6 |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 5.83 psi (40.2 kPa) |
| Number Of Shoes Per Side | 44 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | A-4BG1T |
| Net Power | 87.2 hp (65 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 216.9 lb ft (294 Nm) |
| Displacement | 264 cu in (4.4 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 27513.7 lb (12480 kg) |
| Fuel Capacity | 63.5 gal (240 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Engine Oil Capacity | 4.1 gal (15.5 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.6 gal (2 L) |
| Alternator Supplied Amperage | 25 amps |
| Hydraulic Pump Flow Capacity | 64 gal/min (242 L/min) |
Swing Mechanism
| Swing Speed | 13.4 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
