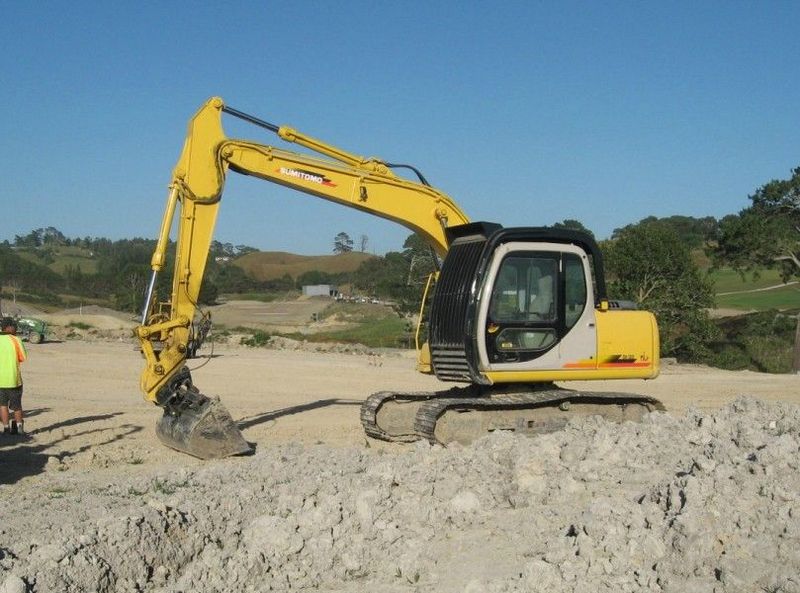

Sumitomo SH120-3
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 24.58 ft in (7490 mm) |
| Shipping Height Of Unit | 8.99 ft in (2740 mm) |
| Max Cutting Height | 30.06 ft in (9160 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 27.14 ft in (8270 mm) |
| Max Vertical Wall Digging Depth | 16.28 ft in (4960 mm) |
| Max Digging Depth | 18.18 ft in (5540 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.93 ft in (2720 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.13 ft in (2780 mm) |
| Tail Swing Radius | 6.73 ft in (2050 mm) |
| Removal Counterweight Clearance | 2.94 ft in (895 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 5.52 psi (38 kPa) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-4BG1T |
| Net Power | 90 hp (67.2 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 264.2 cu in (4.4 L) |
Operational
| Operating Weight | 26455.5 lb (12000 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Hydraulic System Fluid Capacity | 32.5 gal (123 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
Swing Mechanism
| Swing Speed | 13.4 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
