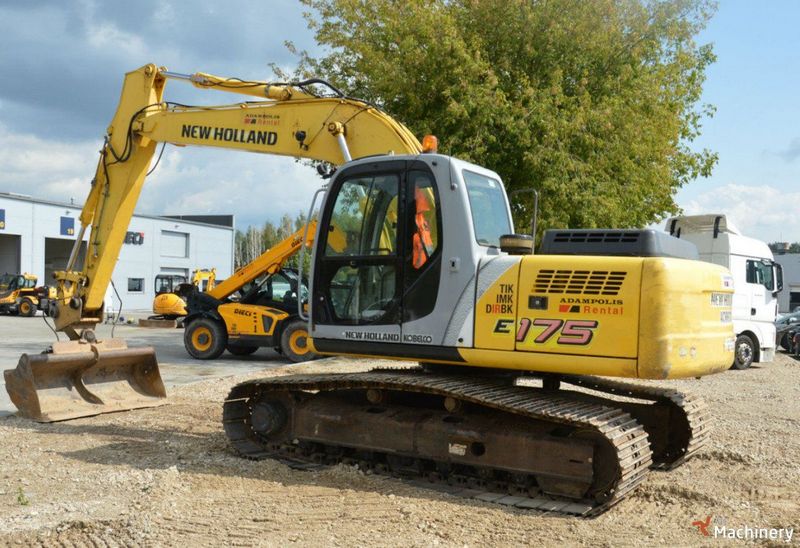

New Holland E175
Browse All New Holland or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.58 ft in (8710 mm) |
| Shipping Height Of Unit | 9.78 ft in (2980 mm) |
| Max Cutting Height | 30.07 ft in (9165 mm) |
| Max Loading Height | 21.3 ft in (6490 mm) |
| Max Reach Along Ground | 27.85 ft in (8487 mm) |
| Max Vertical Wall Digging Depth | 17.71 ft in (5395 mm) |
| Max Digging Depth | 18.51 ft in (5640 mm) |
| Boom/Stick Option (Hex) 1 | stick 2200mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 28.42 ft in (8660 mm) |
| Max Cutting Height | 30.63 ft in (9335 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Loading Height | 21.89 ft in (6670 mm) |
| Max Reach Along Ground | 29.02 ft in (8845 mm) |
| Max Vertical Wall Digging Depth | 19.08 ft in (5814 mm) |
| Max Digging Depth | 19.82 ft in (6040 mm) |
| Boom/Stick Option (Hex) 2 | stick 2600mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 28.45 ft in (8670 mm) |
| Max Cutting Height | 31.81 ft in (9695 mm) |
| Max Loading Height | 23 ft in (7010 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Reach Along Ground | 30.68 ft in (9350 mm) |
| Max Vertical Wall Digging Depth | 20.85 ft in (6355 mm) |
| Max Digging Depth | 21.46 ft in (6540 mm) |
| Boom/Stick Option (Hex) 3 | stick 3100mm |
Dimensions
| Ground Clearance | 1.61 ft in (490 mm) |
| Height To Top Of Cab | 9.72 ft in (2960 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 10.14 ft in (3090 mm) |
| Tail Swing Radius | 8.24 ft in (2510 mm) |
| Removal Counterweight Clearance | 3.47 ft in (1055 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Track Rollers Per Side | 2 |
| Ground Pressure | 6.97 psi (48 kPa) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Number Of Carrier Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 4 |
| Engine Model | CNH F4ED484E |
| Net Power | 112 hp (83.6 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 332 lb ft (450 Nm) |
| Aspiration | turbocharged and intercooler |
| Displacement | 238 cu in (3.9 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 38580.9 lb (17500 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 69.3 gal/min (262 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1.3 yd3 (1 m3) |
