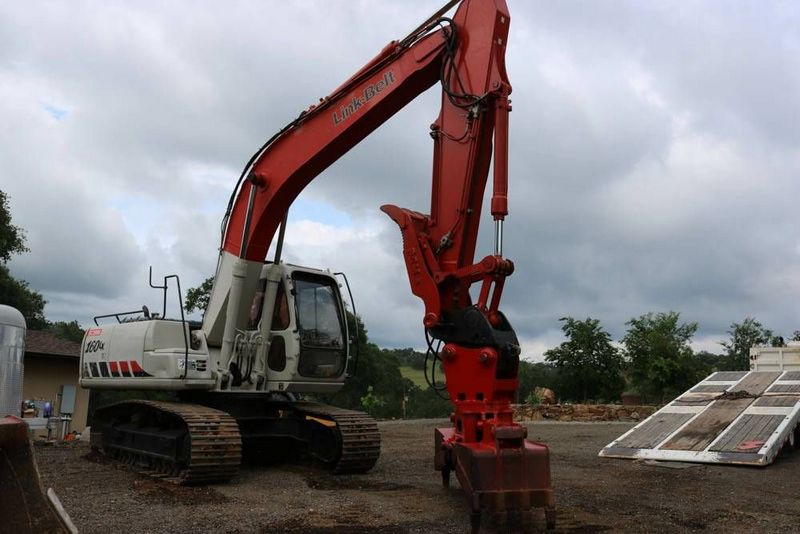

Link-Belt 160LX
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 27.56 ft in (8400 mm) |
| Shipping Height Of Unit | 9.68 ft in (2950 mm) |
| Max Cutting Height | 30.52 ft in (9300 mm) |
| Max Loading Height | 21.89 ft in (6670 mm) |
| Max Reach Along Ground | 29.43 ft in (8970 mm) |
| Max Vertical Wall Digging Depth | 17.07 ft in (5200 mm) |
| Max Digging Depth | 20.08 ft in (6120 mm) |
| Boom/Stick Option (Hex) 1 | Boom 16'11" (5150mm) / Stick 8'10" (2700mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 27.7 ft in (8440 mm) |
| Max Cutting Height | 31.47 ft in (9590 mm) |
| Shipping Height Of Unit | 10.18 ft in (3100 mm) |
| Max Loading Height | 22.81 ft in (6950 mm) |
| Max Reach Along Ground | 30.58 ft in (9320 mm) |
| Max Vertical Wall Digging Depth | 18.64 ft in (5680 mm) |
| Max Digging Depth | 21.17 ft in (6450 mm) |
| Boom/Stick Option (Hex) 2 | Boom 16'11" (5150mm) / Stick 10'0" (3050mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.68 ft in (2950 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 10.14 ft in (3090 mm) |
| Tail Swing Radius | 7.78 ft in (2370 mm) |
| Removal Counterweight Clearance | 3.35 ft in (1020 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 5.77 psi (39.79 kPa) |
| Number Of Shoes Per Side | 43 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.6 mph (5.8 km/h) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | DD-4BG1T |
| Net Power | 101 hp (75.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 311 lb ft (421.7 Nm) |
| Aspiration | Turbocharged |
| Displacement | 264 cu in (4.4 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 36200 lb (16420.1 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 4.7 gal (17.7 L) |
| Hydraulic System Fluid Capacity | 39.1 gal (148 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 72.4 gal/min (274.1 L/min) |
Swing Mechanism
| Swing Speed | 11.4 rpm |
| Swing Torque | 33260 lb ft (45094.6 Nm) |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.2 yd3 (0.9 m3) |
