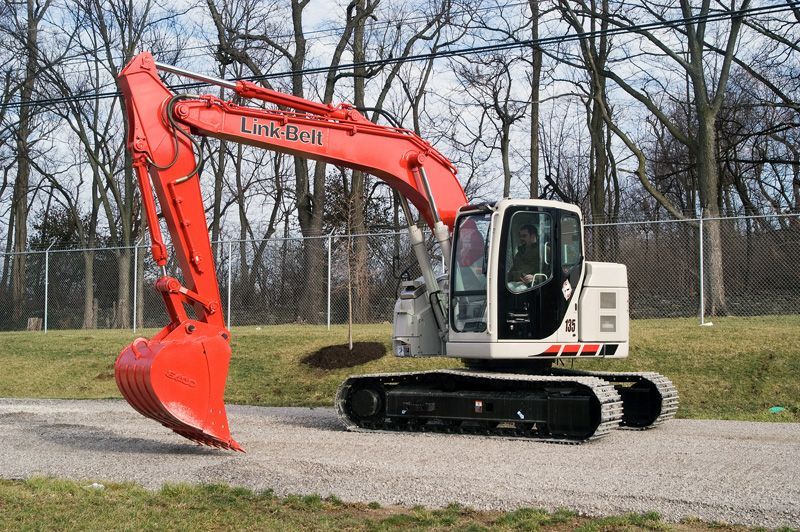

Link-Belt 135 Spin Ace
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.76 ft in (7240 mm) |
| Shipping Height Of Unit | 9.03 ft in (2750 mm) |
| Max Cutting Height | 30.55 ft in (9310 mm) |
| Max Loading Height | 22.68 ft in (6910 mm) |
| Max Reach Along Ground | 26.48 ft in (8070 mm) |
| Max Vertical Wall Digging Depth | 15.92 ft in (4850 mm) |
| Max Digging Depth | 17.95 ft in (5470 mm) |
| Boom/Stick Option (Hex) 1 | Boom 15'6" (4730mm) / Stick 7'10" (2390mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 23.73 ft in (7230 mm) |
| Max Cutting Height | 31.24 ft in (9520 mm) |
| Shipping Height Of Unit | 9.03 ft in (2750 mm) |
| Max Loading Height | 23.4 ft in (7130 mm) |
| Max Reach Along Ground | 27.66 ft in (8430 mm) |
| Max Vertical Wall Digging Depth | 16.67 ft in (5080 mm) |
| Max Digging Depth | 19.46 ft in (5930 mm) |
| Boom/Stick Option (Hex) 2 | Boom 15'6" (4730mm) / Stick 9'4" (2850mm) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Height To Top Of Cab | 9.03 ft in (2750 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 9.16 ft in (2790 mm) |
| Tail Swing Radius | 4.86 ft in (1480 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 5.22 psi (36 kPa) |
| Number Of Shoes Per Side | 43 |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | BB-4BG1T |
| Net Power | 88 hp (65.7 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 237 lb ft (321.4 Nm) |
| Aspiration | Natural |
| Displacement | 264 cu in (4.4 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 29100 lb (13199.6 kg) |
| Fuel Capacity | 43.6 gal (165 L) |
| Cooling System Fluid Capacity | 4.7 gal (17.7 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 61.8 gal/min (234 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
| Swing Torque | 27040 lb ft (36661.4 Nm) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
