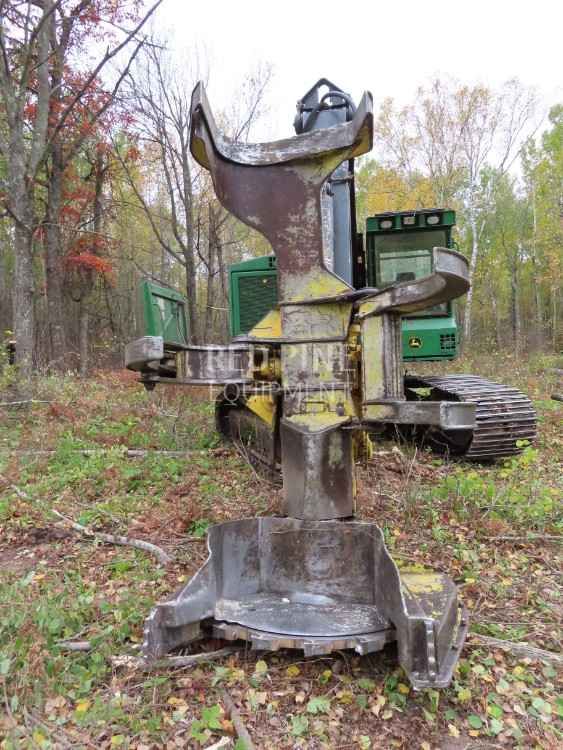

John Deere 703G
Browse All John Deere or Harvester Models
Contents:
Boom
| Max Reach W/ Head | 32.52 ft in (9910 mm) |
Dimensions
| Overall Width | 9.65 ft in (2940 mm) |
| Height To Top Of Cab | 11.16 ft in (3400 mm) |
Undercarriage
| Track Length | 13.59 ft in (4140 mm) |
| Ground Clearance | 2.34 ft in (711 mm) |
| Track Gauge | 7.55 ft in (2300 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 6.8 psi (46.89 kPa) |
| Track Pitch | 7.49 in (190 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6081H |
| Gross Power | 181.1 hp (135 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 494.3 cu in (8.1 L) |
| Max Torque | 678.6 lb ft (920 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 45417.5 lb (20601 kg) |
| Fuel Capacity | 154.3 gal (584 L) |
| Hydraulic System Fluid Capacity | 52.1 gal (197 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Cooling System Fluid Capacity | 10.2 gal (38.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed | 3 mph (4.8 km/h) |
