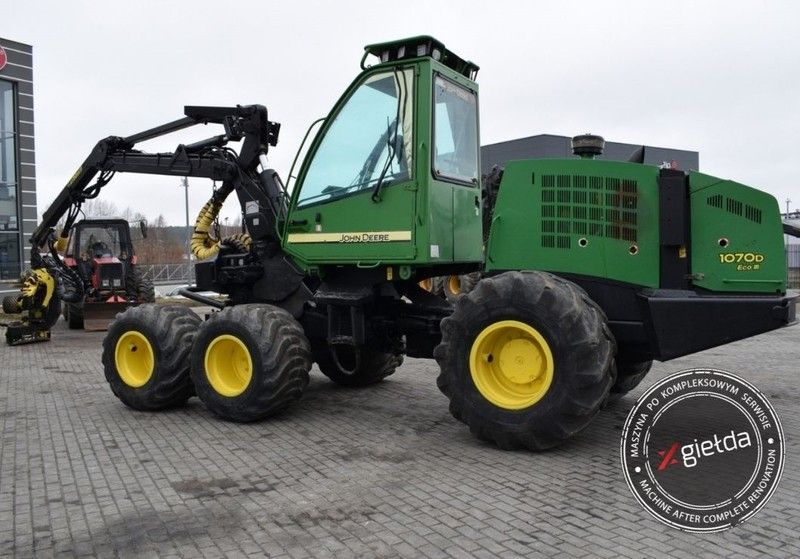

John Deere 1070D
Browse All John Deere or Harvester Models
Contents:
Boom
| Max Reach W/ Head | 32.83 ft in (10006.59 mm) |
Dimensions
| Overall Width | 8.33 ft in (2538.99 mm) |
| Wheelbase | 11.5 ft in (3505.2 mm) |
| Height To Top Of Cab | 11.83 ft in (3605.79 mm) |
Undercarriage
| Ground Clearance | 1.89 ft in (574.03 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068HTJ |
| Gross Power | 182 hp (135.8 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 414 cu in (6.8 L) |
| Max Torque | 575.3 lb ft (780 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 31085 lb (14100 kg) |
| Fuel Capacity | 79.3 gal (300.2 L) |
| Hydraulic System Fluid Capacity | 44.9 gal (170 L) |
| Cooling System Fluid Capacity | 8.2 gal (31.1 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
| Max Speed | 14.9 mph (24 km/h) |
Drive System
| Tire Size - Front | 600 x 22.5, 16 PR ELS NK |
| Tire Size - Rear | 750 X 26.5, 20 PR TRS NK |
