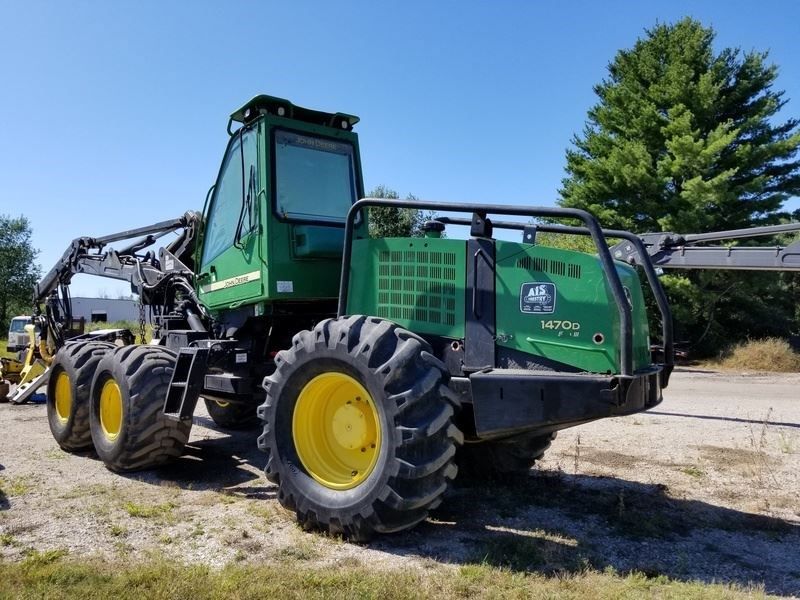

John Deere 1470D
Browse All John Deere or Harvester Models
Contents:
Boom
| Max Reach W/ Head | 28.25 ft in (8610.6 mm) |
Dimensions
| Overall Width | 9.85 ft in (3000 mm) |
| Wheelbase | 13.26 ft in (4040 mm) |
| Height To Top Of Cab | 12.5 ft in (3810 mm) |
| Side Tilt | 15 degrees |
| Forward Tilt | 11 degrees |
Undercarriage
| Ground Clearance | 2.33 ft in (708.66 mm) |
| Ground Pressure | 9.7 psi (66.88 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6090HTJ |
| Gross Power | 241 hp (179.8 kw) |
| Power Measured @ | 1200 rpm |
| Displacement | 552 cu in (9.1 L) |
| Max Torque | 922 lb ft (1250.1 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 43431 lb (19700 kg) |
| Fuel Capacity | 127 gal (480.8 L) |
| Hydraulic System Fluid Capacity | 76.6 gal (290 L) |
| Cooling System Fluid Capacity | 7.4 gal (28.1 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
| Max Speed | 13.7 mph (22.1 km/h) |
Drive System
| Tire Size - Front | 650 x 26.5, 20 PR Forest King ELS NK |
| Tire Size - Rear | 700 x 34, 14 PR TRS NK |
