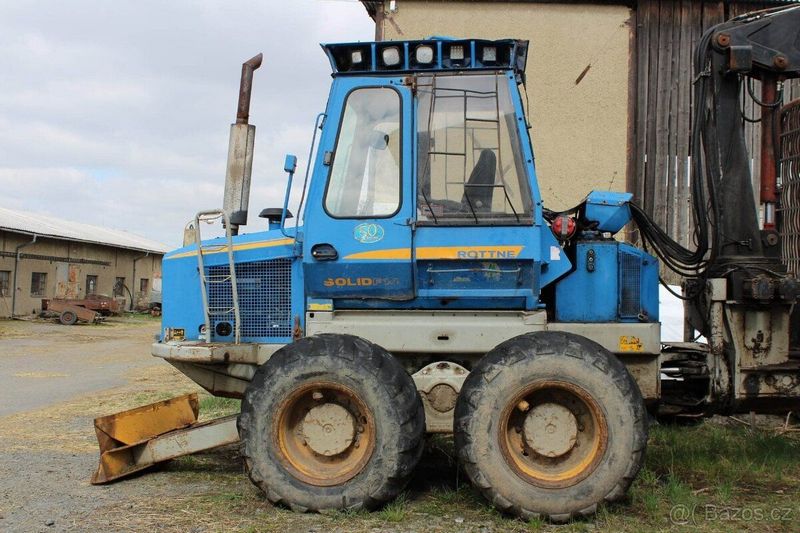

Rottne Solid F14
Contents:
Dimensions
| Length | 31.67 ft in (9650 mm) |
| Wheelbase | 17.73 ft in (5404 mm) |
| Width Over Tires | 8.37 ft in (2550 mm) |
| Height To Top Of Crane | 12.24 ft in (3730 mm) |
| Ground Clearance | 2.01 ft in (612 mm) |
Engine
| Engine Make | 2240 |
| Engine Model | e 6068 T 275 |
| Power | 163 hp (121.6 kw) |
| Torque | 449 lb ft (608.8 Nm) |
| Displacement | 415 cu in (6.8 L) |
Operational
| Operating Weight - 8wd | 32848.9 lb (14900 kg) |
| Fuel Capacity | 42.3 gal (160 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 110 amps |
| Front/Rear Tire Size - 8wd | 600/55x26.5 T428 SB |
Transmission
| Transmission Type | Hydrostatic Mechanical |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 15.6 mph (25 km/h) |
Hydraulic
| Relief Valve Pressure | 2900 psi (19994.8 kPa) |
Bunk
| Load Weight - 8wd | 30864.8 lb (14000 kg) |
| Load Area | 59.3 ft2 (5.5 m2) |
Crane
| Max Reach | 23.3 ft in (7100 mm) |
| Gross Lift Torque | 17200 lb ft (23320.1 Nm) |
