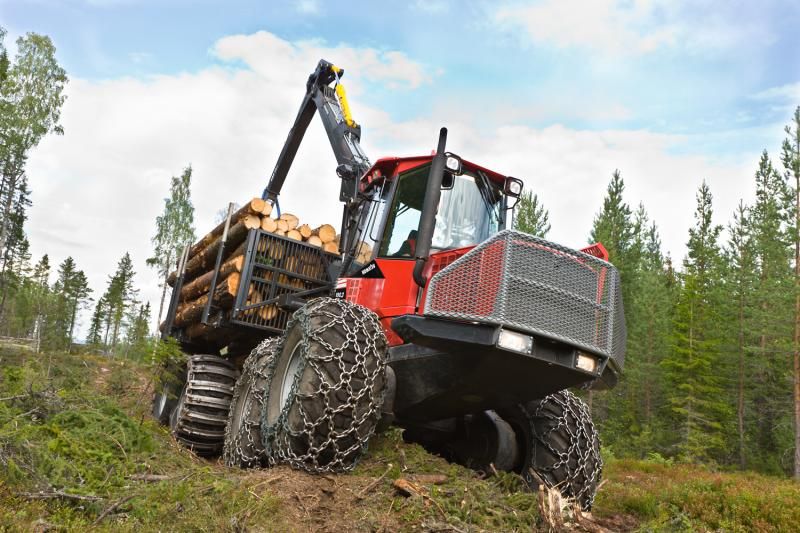

Komatsu 890.3
Contents:
Dimensions
| Length | 30.5 ft in (9296 mm) |
| Wheelbase | 10.41 ft in (3170 mm) |
| Width Over Tires | 10.41 ft in (3172 mm) |
| Height To Top Of Crane | 12.5 ft in (3809 mm) |
| Ground Clearance | 2.25 ft in (683 mm) |
| Length Of Bunk Area | 4.93 ft in (1500 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | 74 CTA Tier 3 |
| Power | 204 hp (152.2 kw) |
| Torque | 742 lb ft (1006.1 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 451.6 cu in (7.4 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbo |
Operational
| Operating Weight - 6wd | 37037.7 lb (16800 kg) |
| Operating Weight - 8wd | 42108.3 lb (19100 kg) |
| Fuel Capacity | 55.5 gal (210 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
| Front/Rear Tire Size - 6wd | 700/70x34 650/65x26.5 |
| Front/Rear Tire Size - 8wd | 650/65x26.5 750/55x26.5 |
Transmission
| Transmission Type | hydrostatic |
| Max Speed | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | single circuit load sensing with variable piston pump |
| Flow Capacity | 89.9 gal/min (340 L/min) |
| Relief Valve Pressure | 3400 psi (23442.2 kPa) |
Bunk
| Load Weight - 6wd | 39683.3 lb (18000 kg) |
| Load Weight - 8wd | 39683.3 lb (18000 kg) |
| Load Area | 60.3 ft2 (5.6 m2) |
Crane
| Max Reach | 24.7 ft in (7500 mm) |
| Gross Lift Torque | 114300 lb ft (154970.1 Nm) |
| Gross Slew Torque | 30460 lb ft (41298.3 Nm) |
