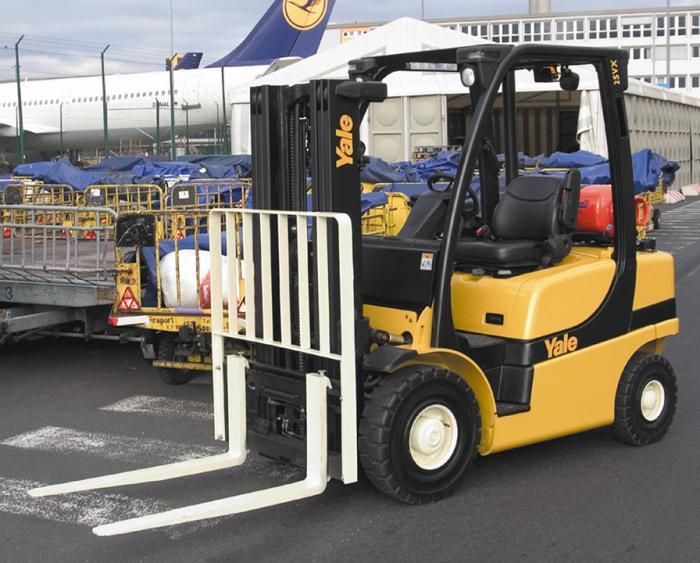

Yale GLP 35 VX
Contents:
Dimensions
| Length To Fork Face | 8.97 ft in (2734 mm) |
| Overall Width | 3.9 ft in (1186 mm) |
| Overall Height - Mast Lowered | 7.21 ft in (2195 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.2 in (132 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.03 ft in (3055 mm) |
| Turning Radius | 7.81 ft in (2380 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 7716.18 lb (3500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 96.46 ft/min (29.4 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | F2 |
| Power | 51 hp (38 kw) |
| Torque | 107.7 lb ft (146 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 134.3 cu in (2.2 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 10617.5 lb (4816 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18 km/h) |
