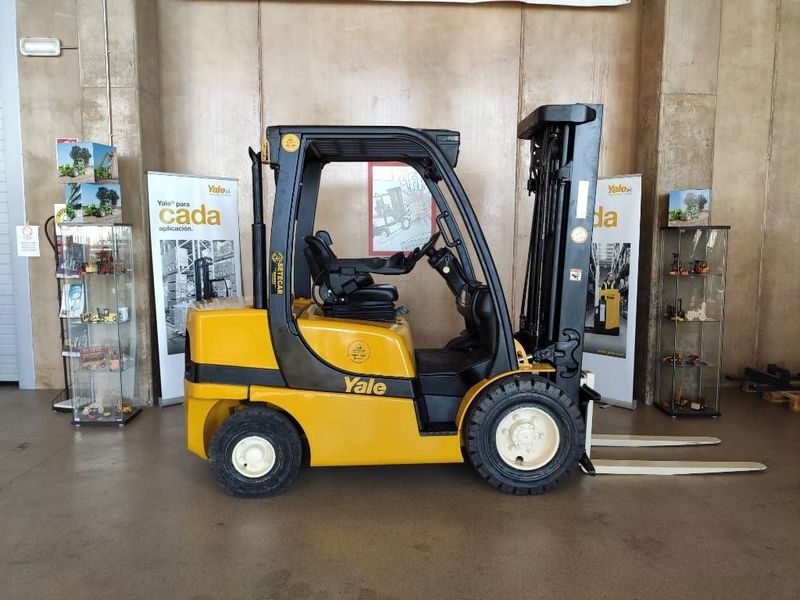

Yale GDP 30 VX
Contents:
Dimensions
| Length To Fork Face | 8.64 ft in (2633 mm) |
| Overall Width | 3.9 ft in (1186 mm) |
| Overall Height - Mast Lowered | 7.21 ft in (2195 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 5.2 in (132 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.03 ft in (3055 mm) |
| Turning Radius | 7.48 ft in (2277 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 92.52 ft/min (28.2 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNE92 |
| Power | 48.1 hp (35.8 kw) |
| Torque | 107.7 lb ft (146 Nm) |
| Power Measured @ | 2450 rpm |
| Displacement | 162.3 cu in (2.7 L) |
| Torque Measured @ | 1400 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 9931.9 lb (4505 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.4 mph (18.2 km/h) |
