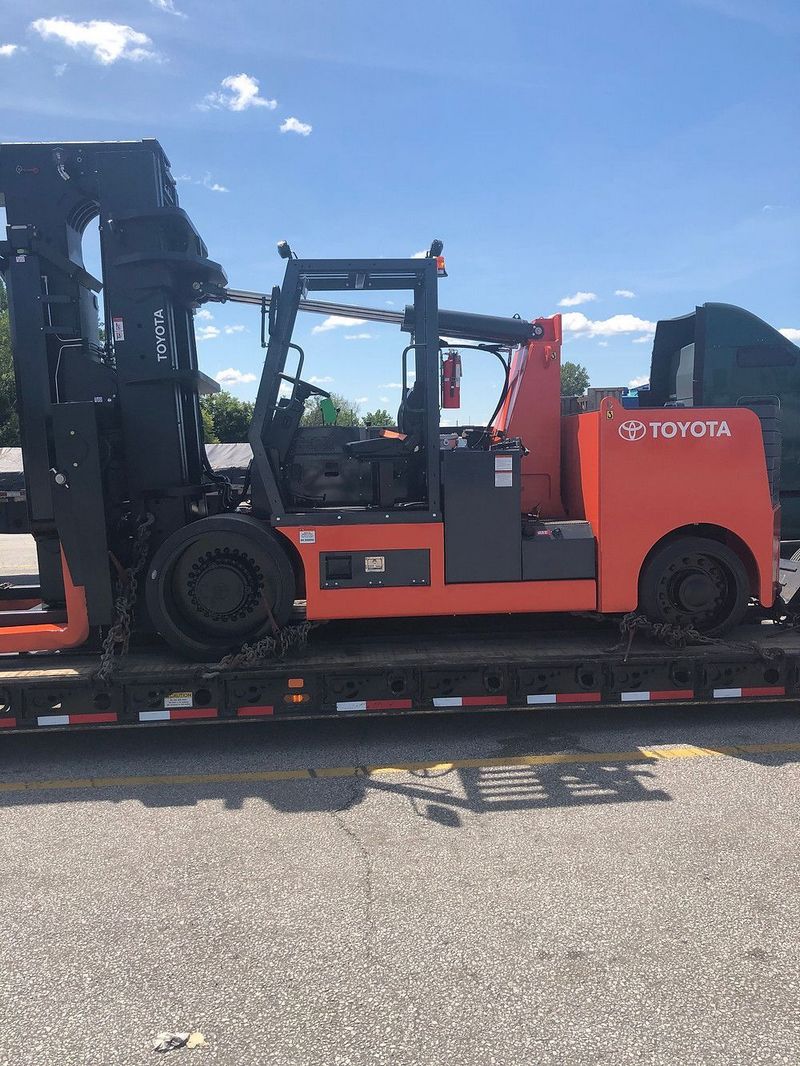

Toyota THDA40/60
Contents:
Dimensions
| Length To Fork Face | 16.88 ft in (5142 mm) |
| Overall Width | 6 ft in (1828.8 mm) |
| Overall Height - Mast Lowered | 8.92 ft in (2717.8 mm) |
| Wheelbase | 12.17 ft in (3708.4 mm) |
| Ground Clearance | 6.5 in (165.1 mm) |
| Height To Top Of Overhead Guard | 7.74 ft in (2357.31 mm) |
| Max Fork Height | 8.71 ft in (2654.3 mm) |
| Free Lift | 48.76 in (1238.3 mm) |
| Right Angle Stack | 17.83 ft in (5433 mm) |
| Turning Radius | 15.42 ft in (4699 mm) |
Mast
| Mast Tip Forward | 12 degrees |
| Mast Tip Rear | 7 degrees |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 59998.81 lb (27215 kg) |
| Max Fork Spread | 64.76 in (1644.7 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | PSI 3.0L |
| Power | 81 hp (60.5 kw) |
| Torque | 149 lb ft (202.1 Nm) |
| Power Measured @ | 3000 rpm |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LP - Gas |
Operational
| Operating Weight | 58861.3 lb (26699 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
Transmission
| Travelspeeds(Frwd)Speed Range | 2 |
| Travelspeeds(Backwrd)Speed Range | 2 |
| Transmission Type | Hydrostatic |
Tires
| Standard_Rear | 28 X 10 X 22 |
| Standard_Option_Front | 28 X 10 X 22 |
Brakes
| Service Brake | Hydrostatic |
| Parking Brake | Mechanical |
