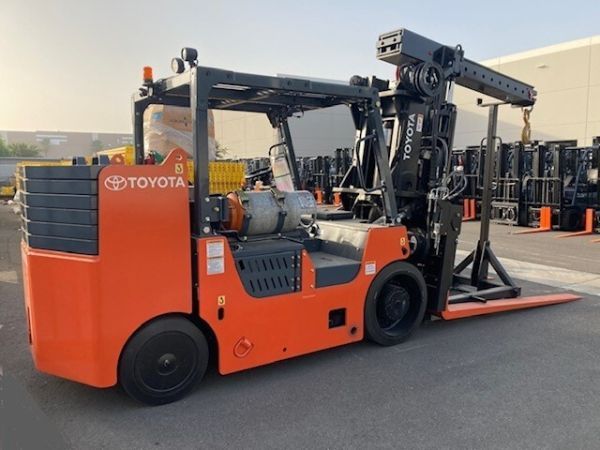

Toyota THDA25/35
Contents:
Dimensions
| Length To Fork Face | 14.59 ft in (4445 mm) |
| Overall Width | 5 ft in (1524 mm) |
| Overall Height - Mast Lowered | 7.92 ft in (2413 mm) |
| Wheelbase | 9.34 ft in (2844.8 mm) |
| Ground Clearance | 4.75 in (120.6 mm) |
| Height To Top Of Overhead Guard | 6.85 ft in (2086 mm) |
| Max Fork Height | 7.92 ft in (2413 mm) |
| Free Lift | 45 in (1143 mm) |
| Right Angle Stack | 14.42 ft in (4394 mm) |
| Turning Radius | 12.25 ft in (3733.8 mm) |
Mast
| Mast Tip Forward | 11 degrees |
| Mast Tip Rear | 6 degrees |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 34998.39 lb (15875 kg) |
| Max Fork Spread | 50.25 in (1276.35 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | PSI 3.0L |
| Power | 81 hp (60.5 kw) |
| Torque | 149 lb ft (202.1 Nm) |
| Power Measured @ | 3000 rpm |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LP-Gas |
Operational
| Operating Weight | 36349.9 lb (16488 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
Transmission
| Travelspeeds(Frwd)Speed Range | 2 |
| Travelspeeds(Backwrd)Speed Range | 2 |
| Transmission Type | Hydrostatic |
Tires
| Standard_Rear | 22 X 8 X 16 |
| Standard_Option_Front | 28 X 14 X 22 |
Brakes
| Service Brake | Hydrostatic |
| Parking Brake | Mechanical |
