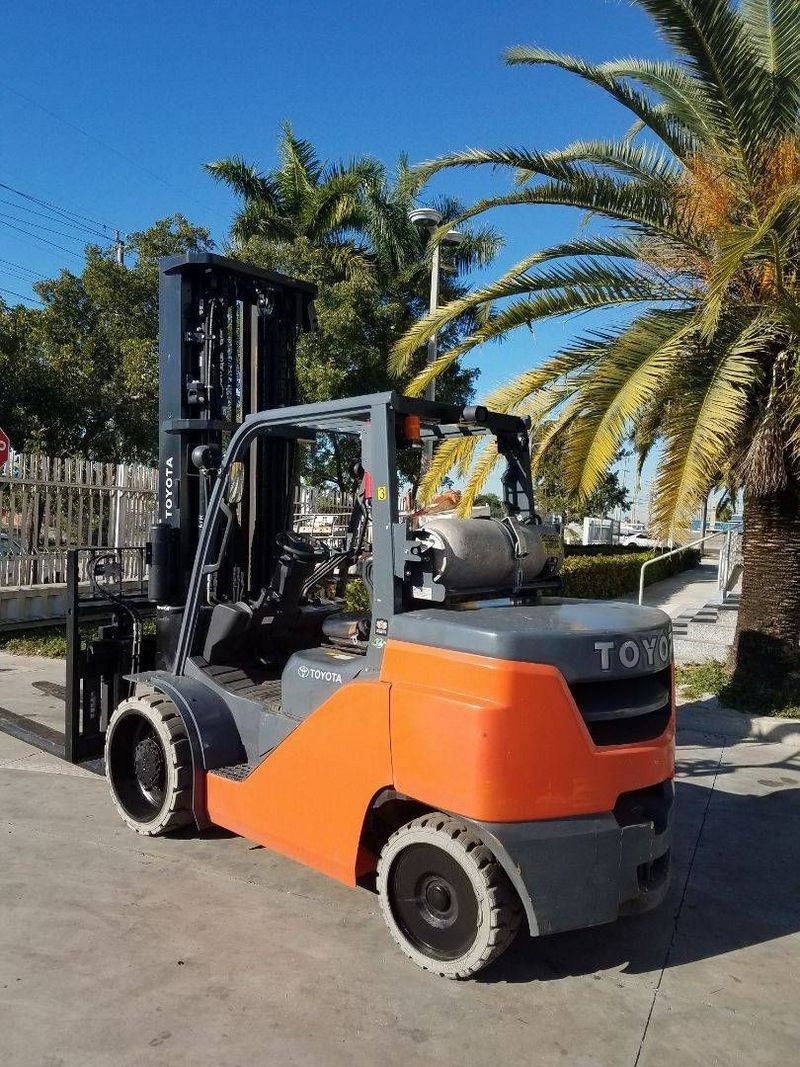

Toyota 8FGC60U
Contents:
Dimensions
| Length To Fork Face | 9.85 ft in (3000 mm) |
| Overall Width | 4.76 ft in (1450 mm) |
| Overall Height - Mast Lowered | 9.65 ft in (2940 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.04 ft in (3060 mm) |
| Fork Spread Max | 3.84 ft in (1170 mm) |
| Fork Spread Min-Outer Edge To Edge | 11.82 in (300 mm) |
| Forward Tilt | 5 degrees |
| Free Lift | 4.93 in (125 mm) |
| Gradeability | 31 % |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 6 degrees |
| Load Capacity | 13227.74 lb (6000 kg) |
| Max Fork Spread | 46.07 in (1170 mm) |
| Lift Height-Smallest Mast | 94.49 in (2400 mm) |
| Lift Height- Largest Mast | 174.61 in (4435 mm) |
Electrical System
| Battery | 12 V /48 Ah |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 1FS |
| Power | 89 hp (66.4 kw) |
| Torque | 213.9 lb ft (290 Nm) |
| Power Measured @ | 2550 rpm |
| Displacement | 224 cu in (3.7 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Auxiliary Hydraulic Flow | 33.8 gal/min (128 L/min) |
| Operating Weight | 19070 lb (8650 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13 mph (21 km/h) |
| Hydraulic System Relief Valve Pressure | 2990 psi (20615.4 kPa) |
Performance
| Drawbar Pull Max -Full Load | 9920.9 lb (4500 kg) |
| Drawbar Pull Max -No Load | 4166.8 lb (1890 kg) |
Transmission
| Speed Ranges (Forwards/Backward) | 1/1 |
| Transmission Type | Power shift |
