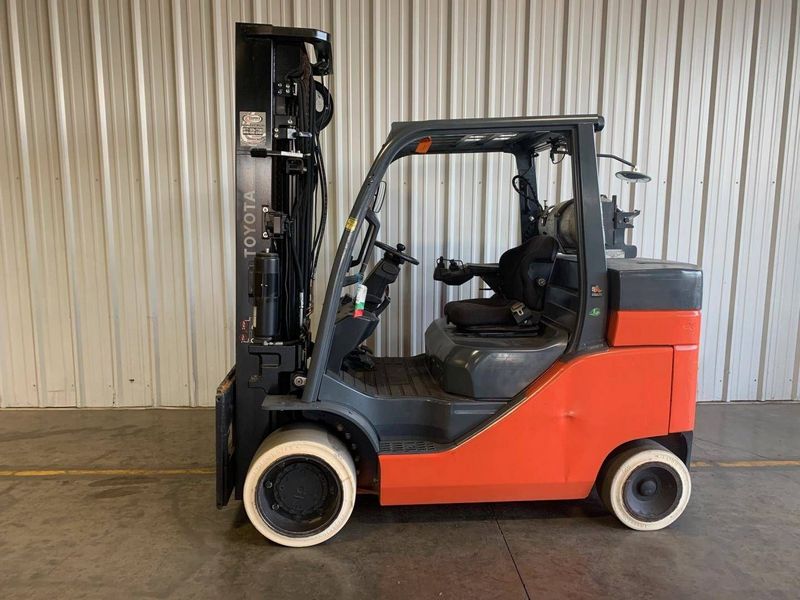

Toyota 8FGC55U-BCS
Contents:
Dimensions
| Length To Fork Face | 8.86 ft in (2700 mm) |
| Overall Width | 4.66 ft in (1420 mm) |
| Wheelbase | 5.88 ft in (1790 mm) |
| Height To Top Of Overhead Guard | 6.96 ft in (2120 mm) |
| Max Fork Height | 10.04 ft in (3060 mm) |
| Fork Spread Max | 3.84 ft in (1170 mm) |
| Fork Spread Min-Outer Edge To Edge | 11.82 in (300 mm) |
| Free Lift | 4.73 in (120 mm) |
| Gradeability | 34 % |
| Turning Radius | 7.32 ft in (2230 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 6 degrees |
| Load Capacity | 12125.43 lb (5500 kg) |
| Lift Height-Smallest Mast | 86.62 in (2200 mm) |
| Lift Height- Largest Mast | 174.61 in (4435 mm) |
| Load Center | 23.63 in (600 mm) |
Electrical System
| Battery | 12 V /48 Ah |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 1FS |
| Power | 89 hp (66.4 kw) |
| Torque | 213.9 lb ft (290 Nm) |
| Power Measured @ | 2350 rpm |
| Displacement | 224 cu in (3.7 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Auxiliary Hydraulic Flow | 33.8 gal/min (128 L/min) |
| Operating Weight | 16314.3 lb (7400 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13 mph (21 km/h) |
| Hydraulic System Relief Valve Pressure | 2630 psi (18133.2 kPa) |
Performance
| Drawbar Pull Max -Full Load | 9920.9 lb (4500 kg) |
| Drawbar Pull Max -No Load | 3395.2 lb (1540 kg) |
Transmission
| Speed Ranges (Forwards/Backward) | 1/1 |
| Transmission Type | Automatic |
Brakes
| Service Brake | Hand |
| Parking Brake | Hydraulic |
