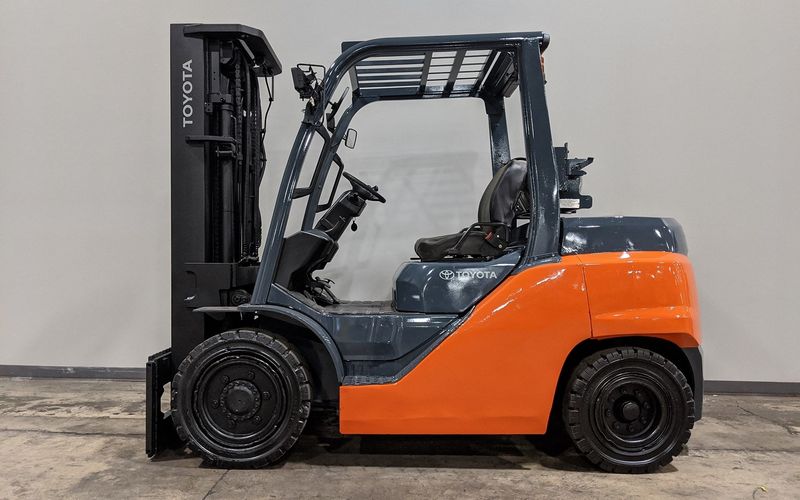

Toyota 8FG40U
Contents:
Dimensions
| Length To Fork Face | 9.78 ft in (2980 mm) |
| Overall Width | 4.43 ft in (1350 mm) |
| Overall Height - Mast Lowered | 6.93 ft in (2110 mm) |
| Wheelbase | 6.24 ft in (1900 mm) |
| Ground Clearance | 4.73 in (120 mm) |
| Height To Top Of Overhead Guard | 7.26 ft in (2210 mm) |
| Max Fork Height | 10.01 ft in (3050 mm) |
| Gradeability | 38 % |
| Free Lift | 4.34 in (110 mm) |
| Turning Radius | 8.73 ft in (2660 mm) |
| Right Angle Stack | 10.41 ft in (3170 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Lower Speed | 104 ft/min (31.7 m/min) |
| Lift Speed | 103 ft/min (31.4 m/min) |
| Load Capacity | 8818.49 lb (4000 kg) |
| Load Center | 24 in (609.6 mm) |
| Fork Turn L/R | 6 degrees |
| Max Fork Spread | 46.1 in (1170.94 mm) |
Engine
| Battery | 12 V |
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 1FS |
| Power | 87 hp (64.9 kw) |
| Torque | 200 lb ft (271.2 Nm) |
| Power Measured @ | 2350 rpm |
| Displacement | 224 cu in (3.7 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | Gasoline |
Operational
| Operating Weight | 13382.1 lb (6070 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Drawbar Pull | 7936.7 lb (3600 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
Transmission
| Travelspeeds(Frwd)Speed Range | 1 |
| Travelspeeds(Backwrd)Speed Range | 1 |
| Transmission Type | Powershift |
| Max Speed - Forward | 13.7 mph (22.1 km/h) |
| Max Speed - Reverse | 13.7 mph (22.1 km/h) |
Tires
| Standard_Rear | 7.00-12-12PR |
| Standard_Option_Front | 250-15-18PR |
Hydraulic
| Main Pump Flow Standard | 33.9 gal/min (128 L/min) |
| Maximum Operating Pressure | 2630 psi (18133.2 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Hand |
