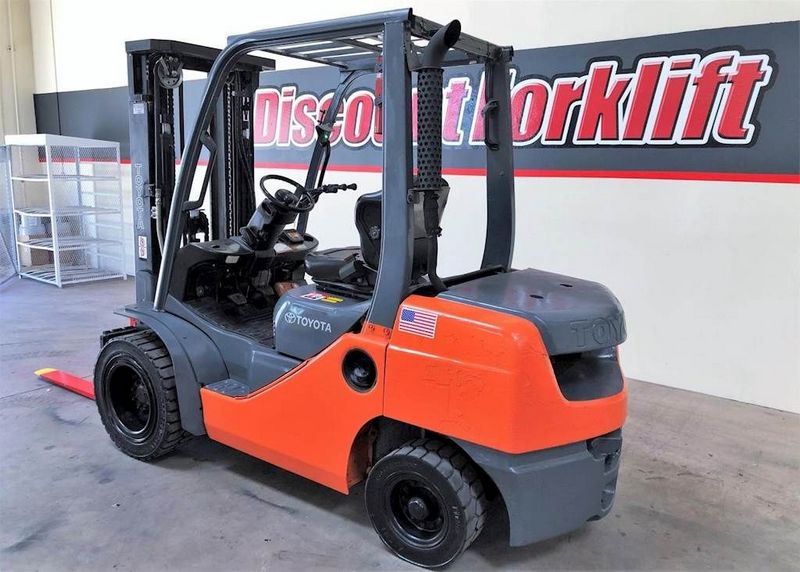

Toyota 8FDU32
Contents:
Dimensions
| Length To Fork Face | 9.19 ft in (2800 mm) |
| Overall Width | 4.07 ft in (1240 mm) |
| Overall Height - Mast Lowered | 7.11 ft in (2165 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 4.53 in (115 mm) |
| Height To Top Of Overhead Guard | 7.12 ft in (2170 mm) |
| Max Fork Height | 10.98 ft in (3345 mm) |
| Free Lift | 5.32 in (135 mm) |
| Gradeability | 28 % |
| Right Angle Stack | 9.37 ft in (2855 mm) |
| Turning Radius | 7.78 ft in (2370 mm) |
Mast
| Load Capacity | 6613.87 lb (3000 kg) |
| Lift Speed | 98 ft/min (98 -) |
| Max Fork Spread | 9.85 in (250 mm) |
| Lower Speed | 98 ft/min (29.88 m/min) |
Engine
| Battery | 12 V |
| Number Of Cylinders | 3 |
| Engine Make | TOYOTA |
| Engine Model | 1ZS |
| Power | 55 hp (41.1 kw) |
| Torque | 148 lb ft (200.7 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 110 cu in (1.9 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 9678.3 lb (4390 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
| Drawbar Pull | 4380.6 lb (1987 kg) |
| Fuel Capacity | 15.9 gal (60.2 L) |
Tires
| Tires - Size_Front | 28 x 9-15-14 PR (1) |
| Tires - Size_Rear | 6.50-10-10PR (1) |
Hydraulic
| Main Pump Flow Standard | 20 gal/min (75.8 L/min) |
| Maximum Operating Pressure | 2275 psi (15685.6 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
