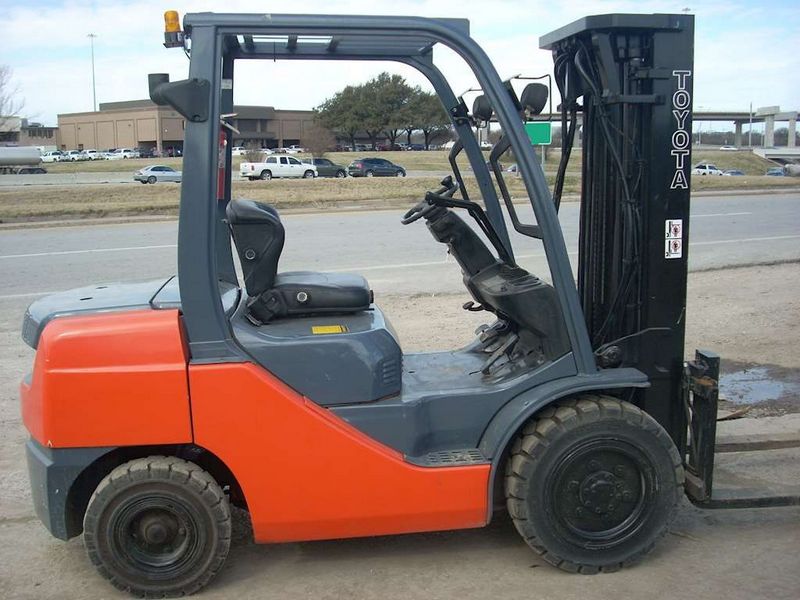

Toyota 8FDU30
Contents:
Dimensions
| Length To Fork Face | 9.13 ft in (2780 mm) |
| Overall Width | 4.07 ft in (1240 mm) |
| Overall Height - Mast Lowered | 7.11 ft in (2165 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 4.53 in (115 mm) |
| Height To Top Of Overhead Guard | 7.12 ft in (2170 mm) |
| Max Fork Height | 10.98 ft in (3345 mm) |
| Free Lift | 5.32 in (135 mm) |
| Gradeability | 26 % |
| Right Angle Stack | 9.31 ft in (2835 mm) |
| Turning Radius | 7.71 ft in (2350 mm) |
Mast
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 5952.49 lb (2700 kg) |
| Lift Speed | 100 ft/min (30.48 m/min) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Max Fork Spread | 9.85 in (250 mm) |
Engine
| Battery | 12 V |
| Engine Make | TOYOTA |
| Engine Model | 4Y - ECS - HP5 |
| Power | 57 hp (42.6 kw) |
| Torque | 118 lb ft (160 Nm) |
| Power Measured @ | 2570 rpm |
| Displacement | 136 cu in (2.3 L) |
| Torque Measured @ | 2200 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 9281.5 lb (4210 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18.1 km/h) |
| Drawbar Pull | 4409.3 lb (2000 kg) |
| Fuel Capacity | 15.9 gal (60.2 L) |
Tires
| Tires - Size_Front | 28 x 9-15-12PR (1) |
| Tires - Size_Rear | 6.50-10-10PR (1) |
Hydraulic
| Main Pump Flow Standard | 21 gal/min (79.5 L/min) |
| Maximum Operating Pressure | 2275 psi (15685.6 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
