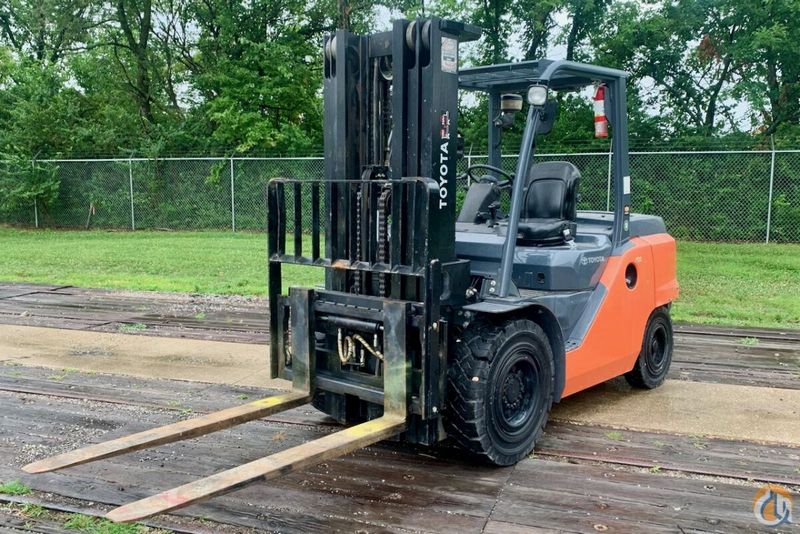

Toyota 8FD45U
Contents:
Dimensions
| Length To Fork Face | 10.21 ft in (3110 mm) |
| Overall Width | 4.76 ft in (1450 mm) |
| Overall Height - Mast Lowered | 7.22 ft in (2200 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Ground Clearance | 4.73 in (120 mm) |
| Height To Top Of Overhead Guard | 7.55 ft in (2300 mm) |
| Max Fork Height | 10.01 ft in (3050 mm) |
| Free Lift | 4.34 in (110 mm) |
| Gradeability | 35 % |
| Right Angle Stack | 10.83 ft in (3300 mm) |
| Turning Radius | 9.03 ft in (2750 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Center | 24 in (609.6 mm) |
| Lower Speed | 106 ft/min (32.31 m/min) |
| Lift Speed | 94 ft/min (28.66 m/min) |
| Load Capacity | 9920.81 lb (4500 kg) |
| Max Fork Spread | 45.7 in (1160.78 mm) |
Engine
| Battery | 12 V |
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 1KD |
| Power | 74 hp (55.2 kw) |
| Torque | 220 lb ft (298.3 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 182 cu in (3 L) |
| Torque Measured @ | 1500 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 14749 lb (6690 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Drawbar Pull | 8157.2 lb (3700 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
Transmission
| Travelspeeds(Frwd)Speed Range | 1 |
| Travelspeeds(Backwrd)Speed Range | 1 |
| Transmission Type | Powershift |
| Max Speed - Forward | 13.1 mph (21.1 km/h) |
| Max Speed - Reverse | 13.1 mph (21.1 km/h) |
Tires
| Standard_Rear | 7.00-12-12PR |
| Standard_Option_Front | 300-15-20PR |
Hydraulic
| Main Pump Flow Standard | 33.9 gal/min (128 L/min) |
| Maximum Operating Pressure | 2630 psi (18133.2 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Hand |
