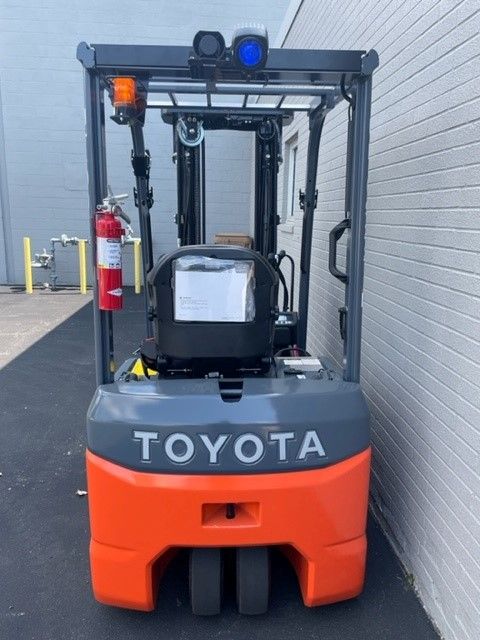

Toyota 8FBES15U
Contents:
Dimensions
| Length To Fork Face | 5.75 ft in (1752.6 mm) |
| Overall Width | 3.51 ft in (1069.34 mm) |
| Overall Height - Mast Lowered | 6.47 ft in (1971.05 mm) |
| Wheelbase | 3.97 ft in (1209.05 mm) |
| Max Fork Height | 9.92 ft in (3022.61 mm) |
| Front Wheel Tread Width | 36 in (914.4 mm) |
| Rear Wheel Tread Width - Max | 6.9 in (175.26 mm) |
| Turning Radius - Outside | 4.6 ft in (1399.55 mm) |
| Undercarriage Width | 3 ft in (914.4 mm) |
| Free Lift | 5.7 in (144.78 mm) |
| Gradeability | 25 % |
Mast
| Lower Speed | 104 ft/min (31.7 m/min) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Lift Speed | 94 ft/min (28.66 m/min) |
Electrical System
| Battery Height | 24.5 in (622.3 mm) |
| Control Load Handling | MOSFET Transistor |
| Battery Width | 39.2 in (995.7 mm) |
| Battery Length | 17.7 in (449.6 mm) |
| Battery Weight | 1475 lb (669.1 kg) |
| Battery Voltage | 510 Ah |
| Battery Capacity | 360 Ah |
Operational
| Operating Weight | 11221.6 lb (5090 kg) |
| Max Speed | 9.9 mph (16 km/h) |
| Drawbar Pull | 2560 lb (1161.2 kg) |
| Hydraulic System Relief Valve Pressure | 2000 psi (13789.6 kPa) |
Tires
| Steering Tire Size | 16 x 6-8-10PR |
| Front | Pneumatic |
| Rear | Pneumatic |
