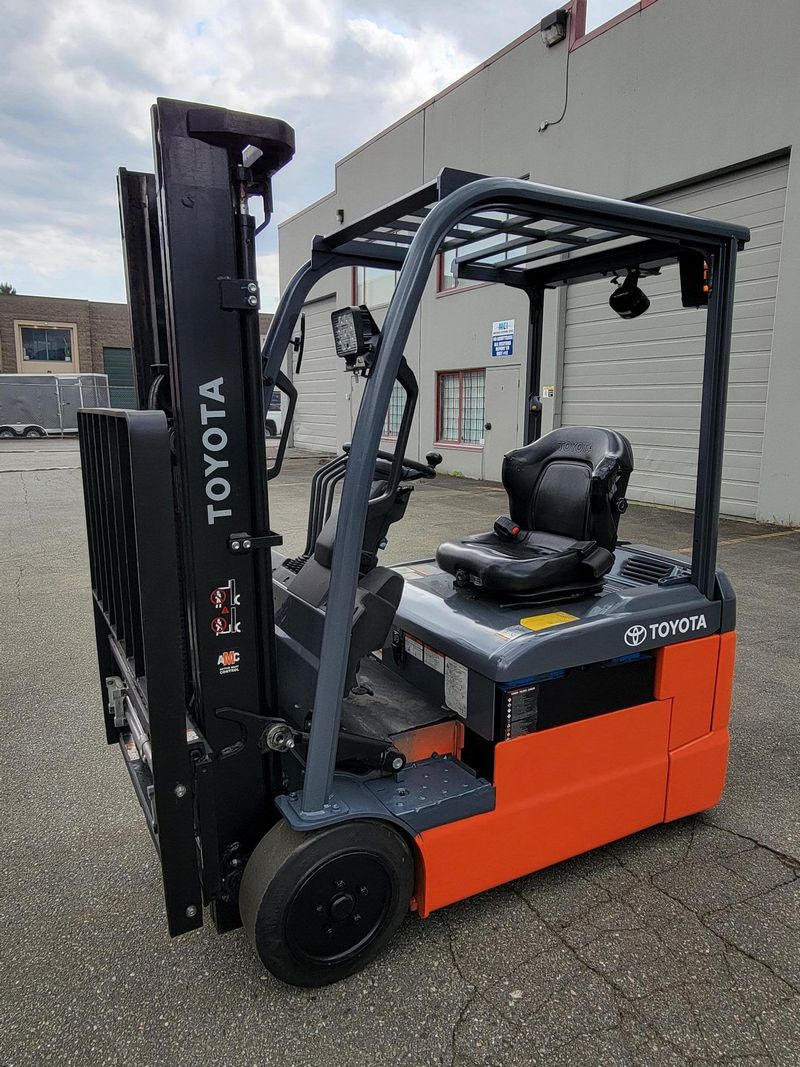

Toyota 8FBE20U
Contents:
Dimensions
| Length To Fork Face | 6.44 ft in (1960.88 mm) |
| Overall Width | 3.46 ft in (1054.1 mm) |
| Overall Height - Mast Lowered | 6.47 ft in (1971.05 mm) |
| Wheelbase | 4.6 ft in (1399.55 mm) |
| Max Fork Height | 9.96 ft in (3035.3 mm) |
| Front Wheel Tread Width | 36 in (914.4 mm) |
| Rear Wheel Tread Width - Max | 6.9 in (175.26 mm) |
| Turning Radius - Outside | 5.24 ft in (1595.12 mm) |
| Undercarriage Width | 3 ft in (914.4 mm) |
| Free Lift | 5.9 in (149.87 mm) |
| Gradeability | 22 % |
Mast
| Lower Speed | 104 ft/min (31.7 m/min) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lift Speed | 83 ft/min (25.3 m/min) |
Electrical System
| Battery Height | 24.5 in (622.3 mm) |
| Control Load Handling | MOSFET Transistor |
| Battery Width | 39.2 in (995.7 mm) |
| Battery Length | 25.1 in (637.6 mm) |
| Battery Weight | 2105 lb (954.9 kg) |
| Battery Voltage | 765 Ah |
| Battery Capacity | 1100 Ah |
Operational
| Operating Weight | 11618.4 lb (5270 kg) |
| Max Speed | 9.8 mph (15.8 km/h) |
| Drawbar Pull | 2500 lb (1134 kg) |
| Hydraulic System Relief Valve Pressure | 2000 psi (13789.6 kPa) |
Tires
| Steering Tire Size | 16 x 6-8-10PR |
| Front | Pneumatic |
| Rear | Pneumatic |
