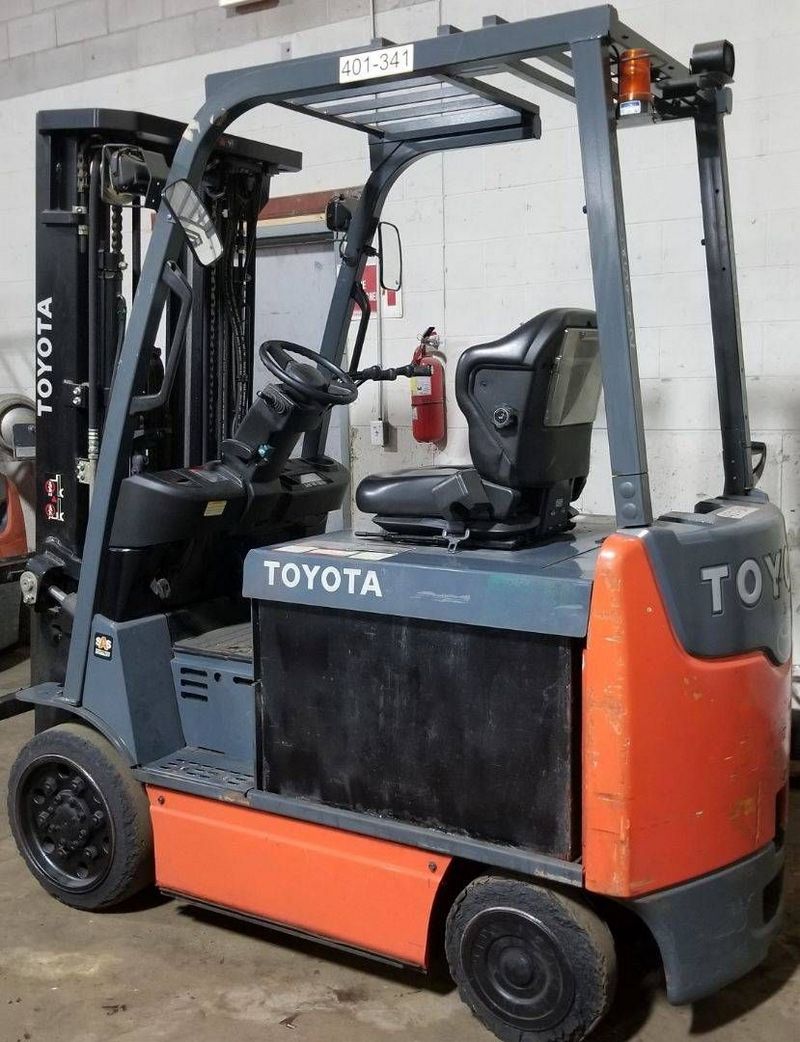

Toyota 8FBCU30
Contents:
Dimensions
| Length To Fork Face | 7.47 ft in (2275 mm) |
| Overall Width | 3.65 ft in (1110 mm) |
| Overall Height - Mast Lowered | 6.94 ft in (2115 mm) |
| Wheelbase | 4.57 ft in (1390 mm) |
| Height To Top Of Overhead Guard | 7.34 ft in (2235 mm) |
| Max Fork Height | 10.98 ft in (3345 mm) |
| Free Lift | 6.11 in (155 mm) |
| Front Wheel Tread Width | 35.83 in (910 mm) |
| Gradeability | 20 % |
| Rear Wheel Tread Width - Max | 36.03 in (915 mm) |
| Right Angle Stack | 7.91 ft in (2410 mm) |
| Turning Radius | 6.44 ft in (1960 mm) |
Mast
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Lift Speed | 69 ft/min (21.04 m/min) |
Electrical System
| Control Power Steering | Transistor Invertor |
| Control Drive | Transistor Invertor |
| Battery Voltage | 36 V |
| Battery Capacity | 1190 Ah |
Engine
| Power | 48 hp (35.8 kw) |
| Fuel Type | Electric |
Operational
| Operating Weight | 7700 lb (3492.7 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18.1 km/h) |
| Drawbar Pull | 3160 lb (1433.4 kg) |
| Tire Size | Front - 21 x 8 x 15, Rear - 16 x 6 x 10.5 |
| Hydraulic System Relief Valve Pressure | 2580 psi (17788.5 kPa) |
