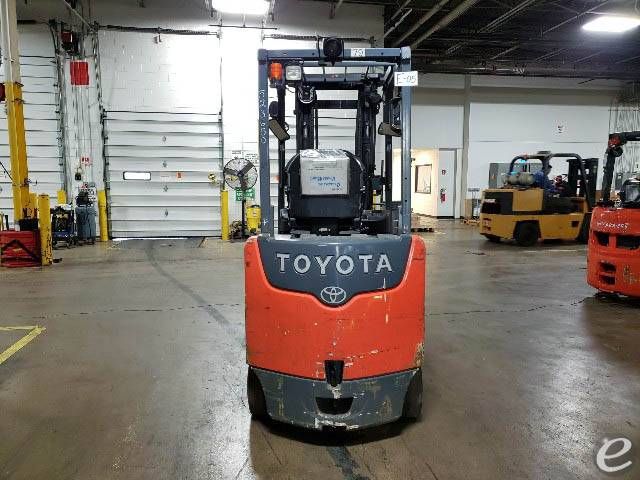

Toyota 8FBCU28
Contents:
Dimensions
| Length To Fork Face | 7.3 ft in (2225 mm) |
| Overall Width | 3.65 ft in (1110 mm) |
| Overall Height - Mast Lowered | 6.94 ft in (2115 mm) |
| Wheelbase | 4.25 ft in (1295 mm) |
| Height To Top Of Overhead Guard | 7.34 ft in (2235 mm) |
| Max Fork Height | 10.96 ft in (3340 mm) |
| Free Lift | 6.11 in (155 mm) |
| Front Wheel Tread Width | 35.83 in (910 mm) |
| Gradeability | 20 % |
| Rear Wheel Tread Width - Max | 36.03 in (915 mm) |
| Right Angle Stack | 7.53 ft in (2295 mm) |
| Turning Radius | 6.06 ft in (1845 mm) |
Mast
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 73 ft/min (22.26 m/min) |
Electrical System
| Control Power Steering | Transistor Invertor |
| Control Drive | Transistor Invertor |
| Battery Voltage | 36 V |
| Battery Capacity | 1020 Ah |
Engine
| Power | 48 hp (35.8 kw) |
| Fuel Type | Electric |
Operational
| Operating Weight | 8060 lb (3656 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.5 mph (18.6 km/h) |
| Drawbar Pull | 3170 lb (1437.9 kg) |
| Tire Size | Front - 21 x 7 x 15 , Rear - 16 x 5 x 10.5 |
| Hydraulic System Relief Valve Pressure | 2580 psi (17788.5 kPa) |
