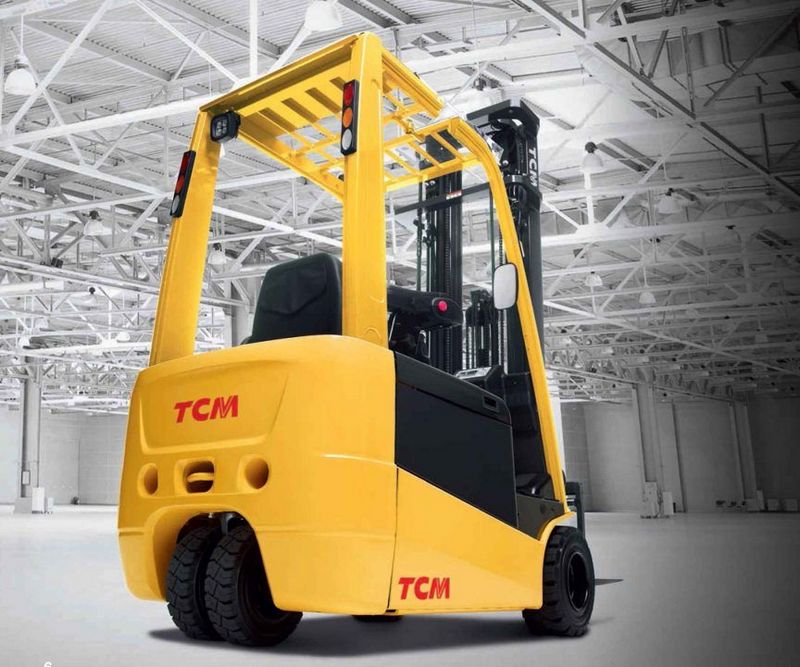

TCM FTB18
Contents:
Dimensions
| Overall Width | 3.51 ft in (1069.33 mm) |
| Overall Height - Mast Lowered | 7.04 ft in (2143.66 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 5.09 ft in (1549.3 mm) |
Mast
| Lift Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3500 lb (1587.58 kg) |
Engine
| Power | 35.6 hp (26.5 kw) |
| Fuel Type | Battery |
Operational
| Operating Weight | 5630 lb (2553.8 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 8.4 mph (13.6 km/h) |
