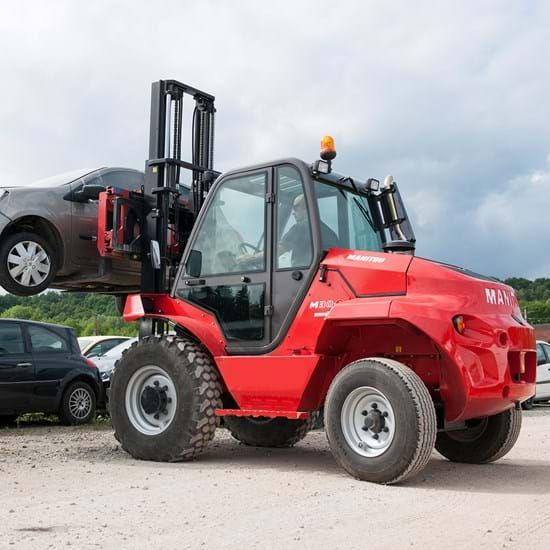

Manitou M30.2
Contents:
Dimensions
| Length To Fork Face | 11.46 ft in (3490 mm) |
| Overall Width | 6.24 ft in (1900 mm) |
| Overall Height - Mast Lowered | 8.93 ft in (2720 mm) |
| Wheelbase | 6.53 ft in (1990 mm) |
| Ground Clearance | 14.57 in (370 mm) |
| Height To Top Of Overhead Guard | 8.34 ft in (2540 mm) |
| Max Fork Height | 12.14 ft in (3700 mm) |
| Turning Radius | 11.46 ft in (3490 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Lift Speed | 0.5 ft/min (0.16 m/min) |
| Max Fork Spread | 57.88 in (1470 mm) |
| Lower Speed | 0.5 ft/min (0.16 m/min) |
| Load Center | 19.69 in (500 mm) |
| Number Of Mast Sections | 1 |
| Load Capacity | 6613.87 lb (3000 kg) |
Engine
| Transmission Type | Torque converter |
| Number Of Cylinders | 4 |
| Cooling Method | Water |
| Engine Make | 2351 |
| Engine Model | Euro 2 1104C 44 |
| Engine Type | Stage 3B |
| Power | 75 hp (56 kw) |
| Torque | 234.6 lb ft (318 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Injection | Direct |
Operational
| Operating Weight | 11662.5 lb (5290 kg) |
| Tire Type | front 14.5 R20 18PR MPT80 TL, R 10R 17.5 134/132 M G291 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.8 mph (22.1 km/h) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
Hydraulic
| Pressure | 3553.5 psi (24500 kPa) |
| Pump Flow Capacity | 25.7 gal/min (97 L/min) |
Brakes
| Front Brakes | 4 |
| Service Brake | Oil immersed multi-disc braking on front/rear axles |
| Parking Brake | Oil immersed multi-disc mechanics on the front axle |
