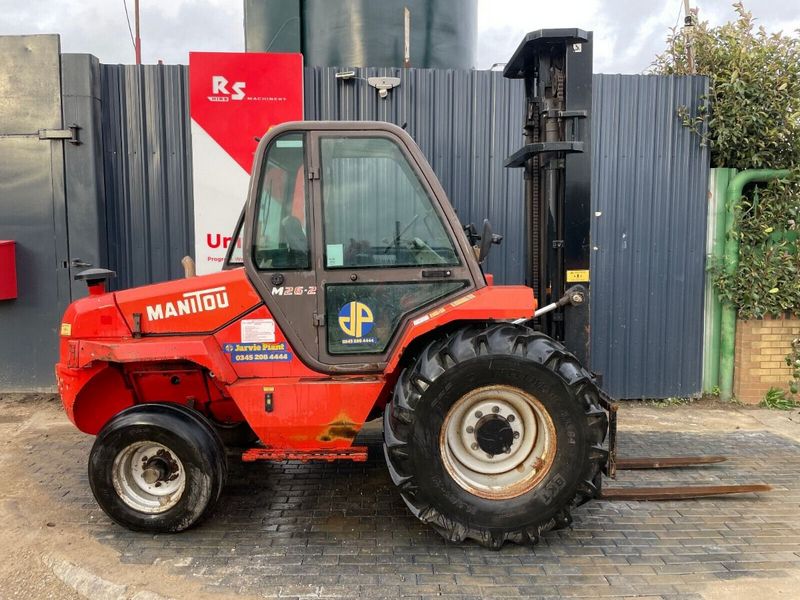

Manitou M26.2
Contents:
Dimensions
| Length To Fork Face | 0.14 ft in (40 mm) |
| Overall Width | 6.24 ft in (1900 mm) |
| Overall Height - Mast Lowered | 8.96 ft in (2730 mm) |
| Wheelbase | 6.53 ft in (1990 mm) |
| Ground Clearance | 14.97 in (380 mm) |
| Height To Top Of Overhead Guard | 8.34 ft in (2540 mm) |
| Max Fork Height | 12.14 ft in (3700 mm) |
| Turning Radius | 11.46 ft in (3490 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Number Of Mast Sections | 1 |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 5732.02 lb (2600 kg) |
| Max Fork Spread | 57.88 in (1470 mm) |
Engine
| Engine Make | 2351 |
| Engine Model | Euro 2 1104C 44 |
| Engine Type | PERKINS 854F-E34T 54009.1.1 |
| Power | 100.6 hp (75 kw) |
| Torque | 234.6 lb ft (318 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 12786.9 lb (5800 kg) |
| Tire Type | FRWD-145R20 18PR MPT80 TL,Backward-10R 17.5 134/132 M G291 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.8 mph (22.1 km/h) |
Transmission
| Transmission Type | Torque converter |
| Reverse | Electrohydraulic |
Lift
| Max Lift Capacity | 5732.1 lb (2600 kg) |
| Max Lift Height | 23 ft in (7000 mm) |
