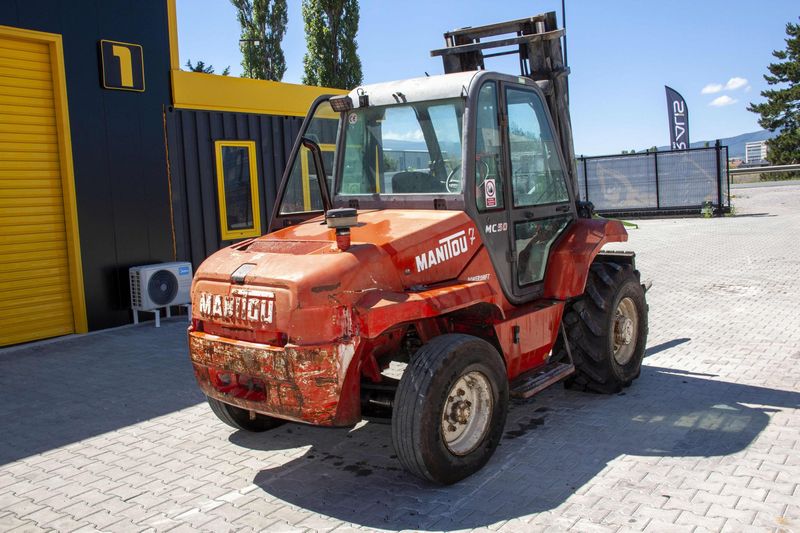

Manitou M 50-2 H
Contents:
Dimensions
| Length To Fork Face | 12.32 ft in (3755 mm) |
| Overall Width | 6.76 ft in (2060 mm) |
| Overall Height - Mast Lowered | 9.39 ft in (2860 mm) |
| Wheelbase | 6.76 ft in (2060 mm) |
| Ground Clearance | 14.18 in (360 mm) |
| Height To Top Of Overhead Guard | 8.16 ft in (2485 mm) |
| Max Fork Height | 12.14 ft in (3700 mm) |
| Turning Radius | 11.16 ft in (3400 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 15 degrees |
| Load Capacity | 8818.49 lb (4000 kg) |
| Number Of Mast Sections | 1 |
| Max Fork Spread | 65.75 in (1670 mm) |
Engine
| Cooling Method | Water |
| Engine Make | 2351 |
| Engine Model | Euro 2 1104C 44 |
| Engine Type | PERKINS 854F-E34T 54009.1.1 |
| Power | 75 hp (56 kw) |
| Torque | 234.6 lb ft (318 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Torque Measured @ | 1400 rpm |
| Injection | Direct |
Capacities
| Hydraulic Oil Tank | 21.2 gal (80 L) |
| Fuel Tank | 22.5 gal (85 L) |
| Pump Capacity | 38189 in (97000 cm) |
Operational
| Operating Weight | 18055.9 lb (8190 kg) |
| Tire Type | front 18-19.5 18PR 166A6 TL,rear 10R17.5 134/132M G291 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14.9 mph (23.9 km/h) |
Brakes
| Park Brake | Oil immersed multi-disc mechanics on the front axle |
| Service Brake | Oil immersed multi-disc braking on front/rear axles |
