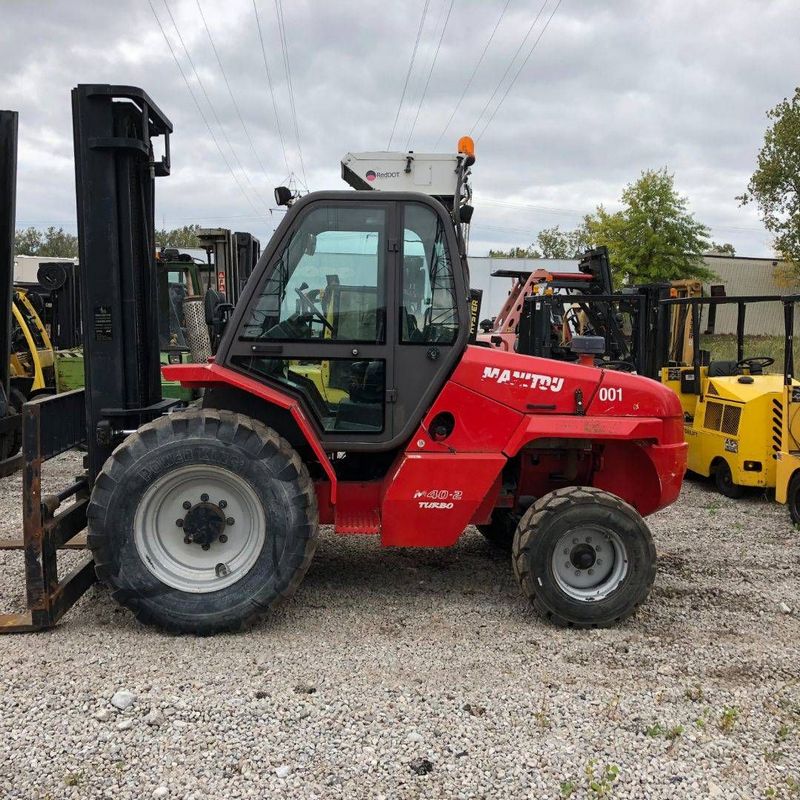

Manitou M 40-2
Contents:
Dimensions
| Length To Fork Face | 12.08 ft in (3680 mm) |
| Overall Width | 6.76 ft in (2060 mm) |
| Overall Height - Mast Lowered | 9.39 ft in (2860 mm) |
| Wheelbase | 6.76 ft in (2060 mm) |
| Ground Clearance | 14.57 in (370 mm) |
| Turning Radius | 10.7 ft in (3260 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 15 degrees |
Engine
| Cooling Method | Water |
| Engine Model | PERKINS - STAGE 3B |
| Engine Type | PERKINS 854F-E34T 54009.1.1 |
| Power | 75 hp (56 kw) |
| Torque | 234.6 lb ft (318 Nm) |
| Torque Measured @ | 1400 rpm |
| Injection | Direct |
Capacities
| Hydraulic Oil Tank | 21.2 gal (80 L) |
| Fuel Tank | 22.5 gal (85 L) |
| Pump Capacity | 38.2 in (97 cm) |
Operational
| Operating Weight | 15818.2 lb (7175 kg) |
| Tire Type | FRWD-18-19.5 18PR 166A6 TL,Backward-10R17.5 134/132M G291 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14.9 mph (23.9 km/h) |
Lift
| Lift Capacity At Max - Height | 8818.5 lb (4000 kg) |
| Max Lift Height | 19.7 ft in (6000 mm) |
| Lifting Time - Unladen | 0.5 sec |
| Lowering Time - Unladen | 0.4 sec |
Brakes
| Front Brakes | 4 |
| Rear Brakes | 4 |
| Service Brake | Oil immersed multi-disc braking on front/rear axles |
| Parking Brake | Oil immersed multi-disc mechanics on the front axle |
