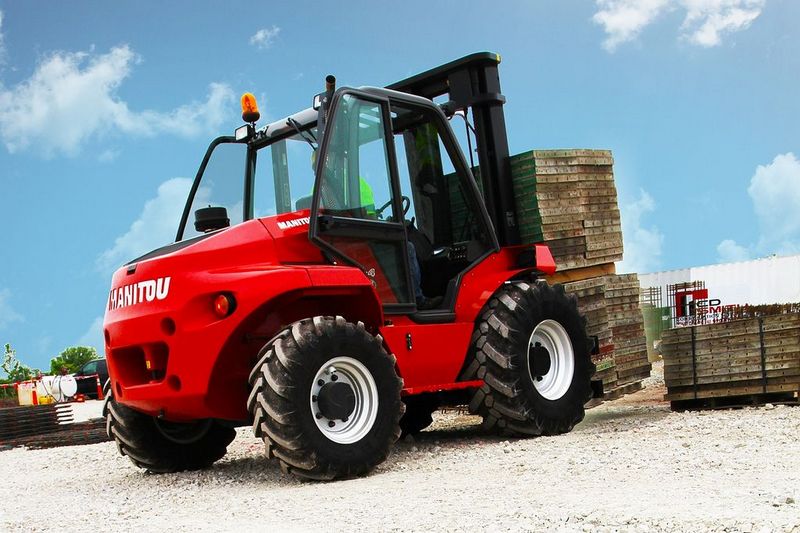

Manitou M 40
Contents:
Dimensions
| Length To Fork Face | 12.08 ft in (3681.99 mm) |
| Overall Width | 7.3 ft in (2222.5 mm) |
| Overall Height - Mast Lowered | 8.34 ft in (2539.9 mm) |
| Wheelbase | 7.09 ft in (2159 mm) |
| Ground Clearance | 1.08 in (27.44 mm) |
| Turning Radius | 9.75 ft in (2971.8 mm) |
Mast
| Mast Tip Forward | 45 degrees |
| Mast Tip Rear | 10 degrees |
| Load Capacity | 8000 lb (3628.74 kg) |
Engine
| Engine Make | 2236 |
| Power | 80 hp (59.7 kw) |
| Displacement | 236 cu in (3.9 L) |
| Torque Measured @ | 2200 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 14800 lb (6713.2 kg) |
| Tire Type | front:15x19.5, rear: 12x16.5 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 16 mph (25.8 km/h) |
