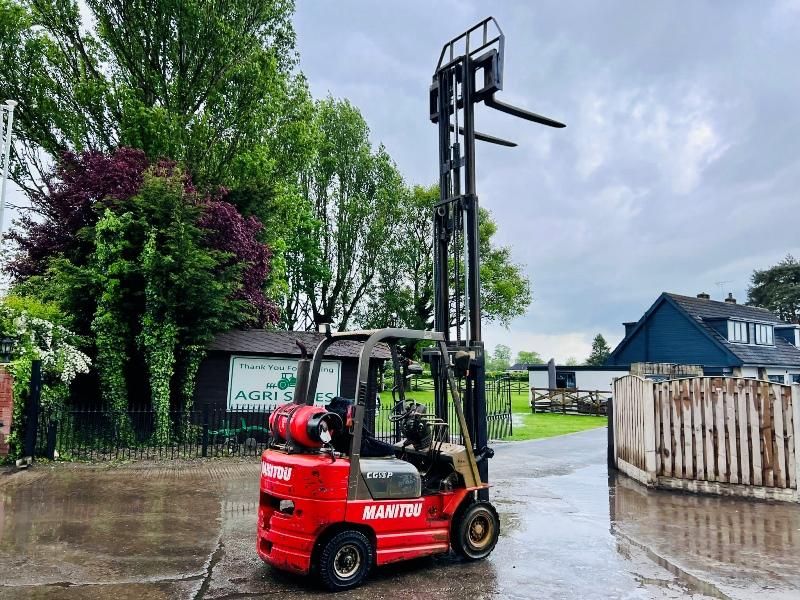

Manitou CG18P
Contents:
Dimensions
| Length To Fork Face | 7.47 ft in (2275 mm) |
| Overall Width | 3.45 ft in (1050 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 4.53 in (115 mm) |
| Height To Top Of Overhead Guard | 6.76 ft in (2060 mm) |
| Max Fork Height | 11.01 ft in (3355 mm) |
| Turning Radius | 6.29 ft in (1915 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 41.34 in (1050 mm) |
| Lower Speed | _ - (26.4 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 3600 lb (1632.94 kg) |
| Lift Speed | _ - (56.4 m/min) |
Engine
| Engine Make | 2311 |
| Engine Model | H20 |
| Power | 43 hp (32 kw) |
| Displacement | 121 cu in (2 L) |
| Fuel Type | LPG |
Operational
| Operating Weight | 6591.9 lb (2990 kg) |
| Tire Type | front 6.50-10-10 PR rear 5.00-8-8 PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.1 mph (21 km/h) |
