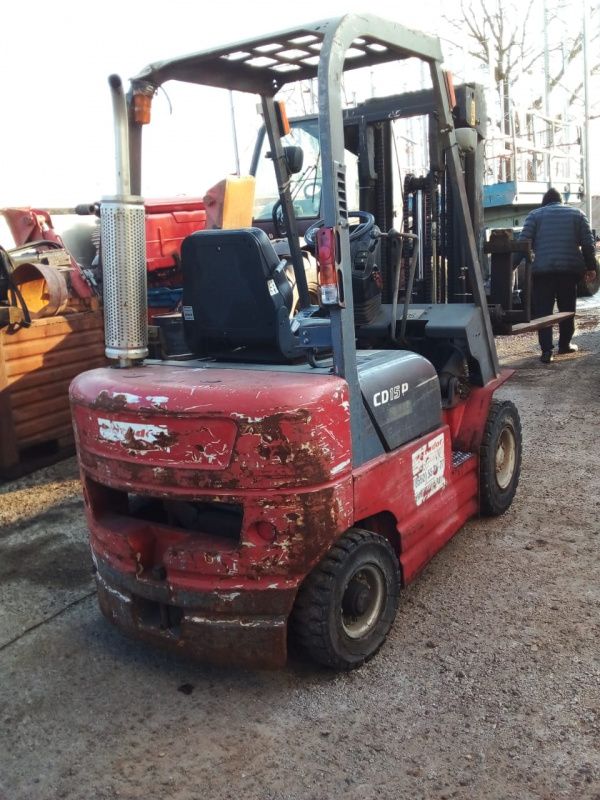

Manitou CD15P
Contents:
Dimensions
| Length To Fork Face | 7.35 ft in (2240 mm) |
| Overall Width | 3.45 ft in (1050 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 4.53 in (115 mm) |
| Height To Top Of Overhead Guard | 6.76 ft in (2060 mm) |
| Max Fork Height | 11.01 ft in (3355 mm) |
| Turning Radius | 6.17 ft in (1880 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 41.34 in (1050 mm) |
| Lower Speed | _ - (30 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Lift Speed | _ - (46.8 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | 4LE1 |
| Power | 43.9 hp (32.7 kw) |
| Displacement | 133 cu in (2.2 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 6393.5 lb (2900 kg) |
| Tire Type | front 6.50-10-10PR rear 5.00-8-8PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.1 mph (21 km/h) |
