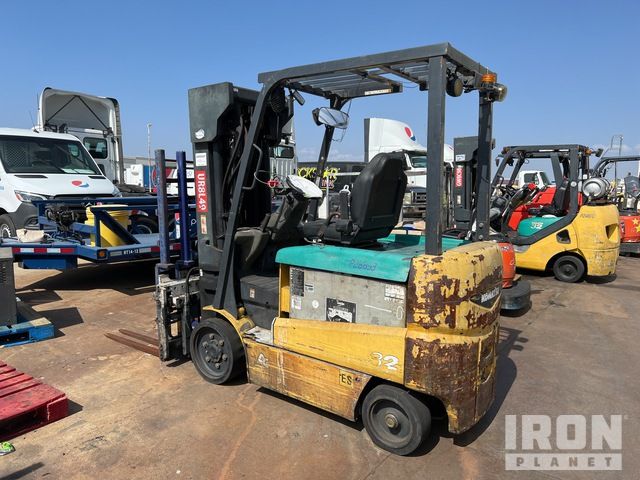

Komatsu FB32SH-6
Contents:
Dimensions
| Length To Fork Face | 7.49 ft in (2280 mm) |
| Overall Width | 3.61 ft in (1100 mm) |
| Overall Height - Mast Lowered | 7.38 ft in (2248 mm) |
| Wheelbase | 4.86 ft in (1480 mm) |
| Ground Clearance | 4.14 in (105 mm) |
| Height To Top Of Overhead Guard | 7.32 ft in (2230 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Right Angle Stack | 8.01 ft in (2440 mm) |
| Turning Radius | 6.55 ft in (1995 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 96.5 ft/min (29.42 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 6500 lb (2948.36 kg) |
| Lift Speed | 47.2 ft/min (14.39 m/min) |
Engine
| Fuel Type | Electric 36V |
Operational
| Operating Weight | 11315 lb (5132.4 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.3 mph (15 km/h) |
