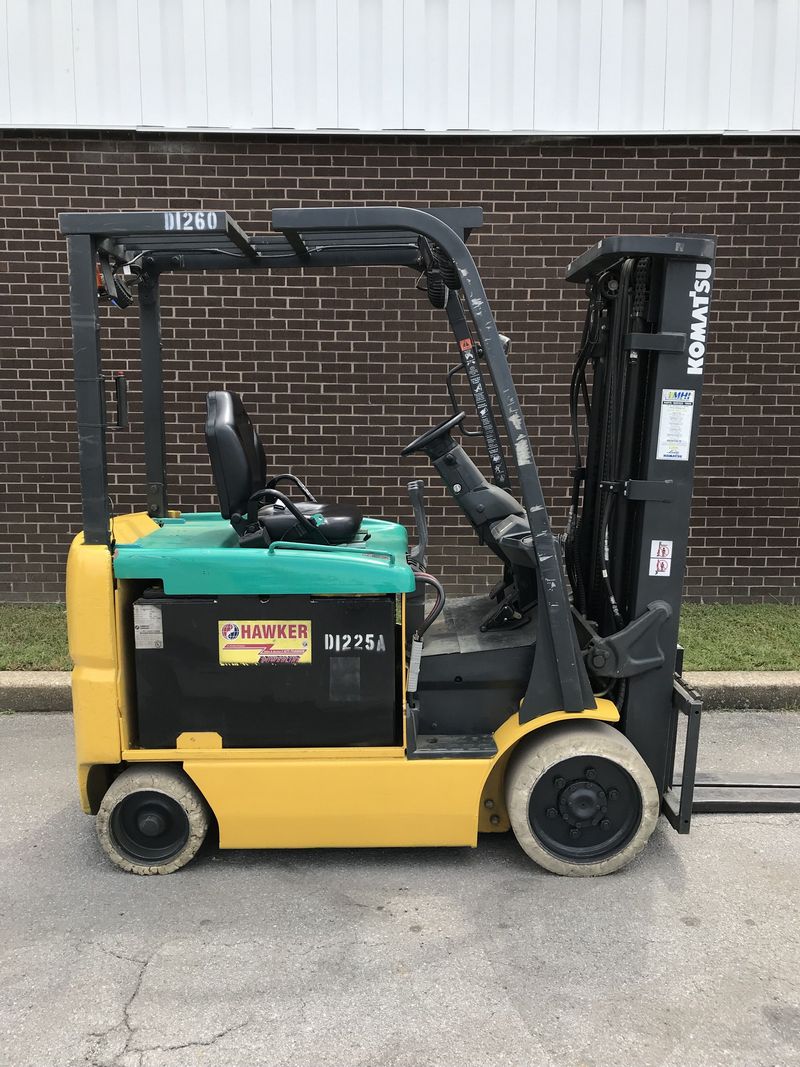

Komatsu FB30SH-6
Contents:
Dimensions
| Length To Fork Face | 7.4 ft in (2255 mm) |
| Overall Width | 3.61 ft in (1100 mm) |
| Overall Height - Mast Lowered | 7.13 ft in (2172 mm) |
| Wheelbase | 4.86 ft in (1480 mm) |
| Ground Clearance | 4.14 in (105 mm) |
| Height To Top Of Overhead Guard | 7.32 ft in (2230 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Right Angle Stack | 7.88 ft in (2400 mm) |
| Turning Radius | 6.42 ft in (1955 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 96.5 ft/min (29.42 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Lift Speed | 51.2 ft/min (15.61 m/min) |
Engine
| Fuel Type | Electric 36V |
Operational
| Operating Weight | 10680 lb (4844.4 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.1 mph (13.1 km/h) |
