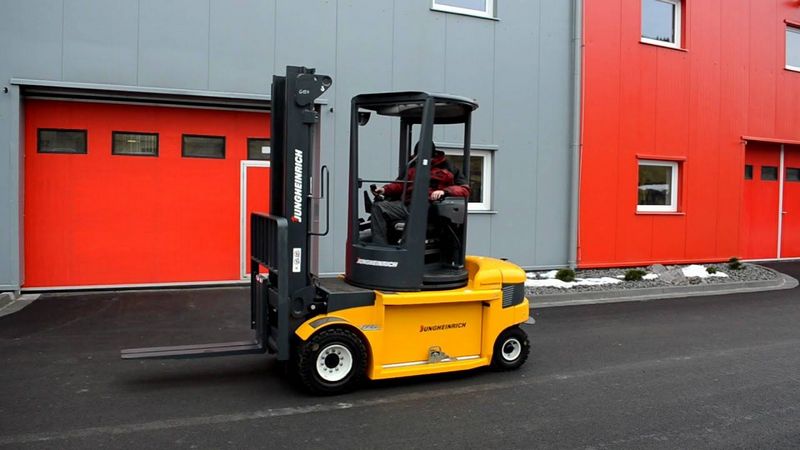

Jungheinrich EFG D30
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.28 ft in (2521 mm) |
| Overall Width | 4.19 ft in (1276 mm) |
| Overall Height - Mast Lowered | 7.22 ft in (2200 mm) |
| Wheelbase | 5.83 ft in (1775 mm) |
| Ground Clearance | 4.93 in (125 mm) |
| Height To Top Of Overhead Guard | 8.4 ft in (2560 mm) |
| Max Fork Height | 10.18 ft in (3100 mm) |
| Turning Radius | 8.04 ft in (2450 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lower Speed | _ - (34.21 m/min) |
| Lift Speed | _ - (40.21 m/min) |
Engine
| Engine Model | Electric engine |
Operational
| Operating Weight | 11186.3 lb (5074 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.4 mph (19.9 km/h) |
