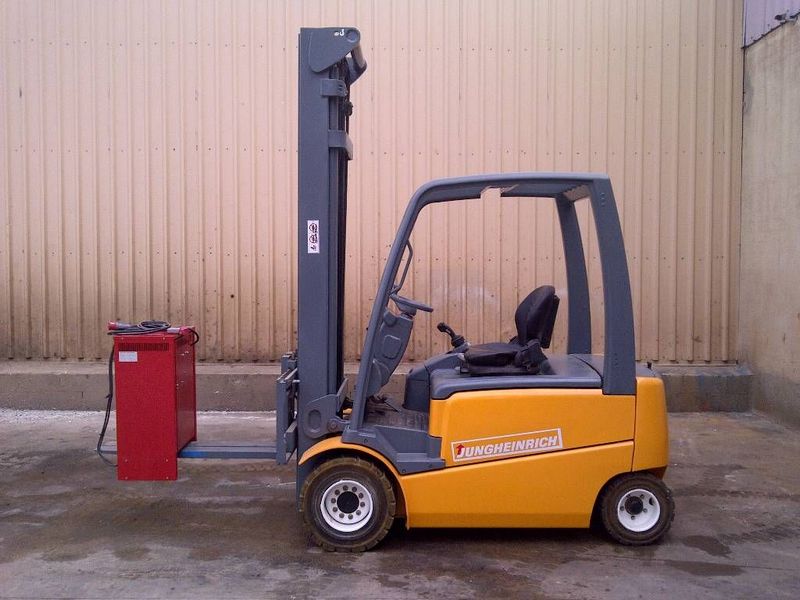

Jungheinrich EFG 430
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 7.97 ft in (2427 mm) |
| Overall Width | 3.93 ft in (1196 mm) |
| Overall Height - Mast Lowered | 7.27 ft in (2215 mm) |
| Wheelbase | 5.52 ft in (1681 mm) |
| Ground Clearance | 4.93 in (125 mm) |
| Height To Top Of Overhead Guard | 7.27 ft in (2215 mm) |
| Max Fork Height | 10.18 ft in (3100 mm) |
| Turning Radius | 7.22 ft in (2200 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lower Speed | _ - (33.6 m/min) |
| Lift Speed | _ - (36 m/min) |
Engine
| Engine Model | Electric engine |
Operational
| Operating Weight | 11243.6 lb (5100 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
