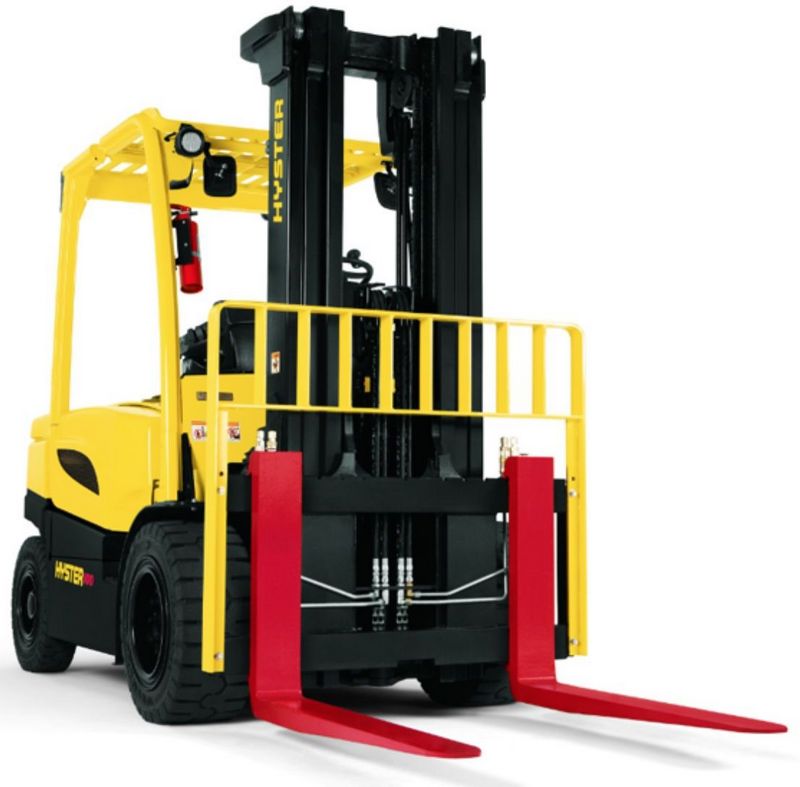

Hyster J90XN
Contents:
Dimensions
| Length To Fork Face | 9.55 ft in (2908 mm) |
| Overall Width | 4.51 ft in (1373 mm) |
| Overall Height - Mast Lowered | 7.62 ft in (2320 mm) |
| Wheelbase | 6.63 ft in (2020 mm) |
| Ground Clearance | 4.93 in (125 mm) |
| Height To Top Of Overhead Guard | 7.68 ft in (2338 mm) |
| Front Tread Range | 44.22 in (1123 mm) |
| Gradeability | 22.7 % |
| Rear Tread Range | 45 in (1143 mm) |
| Right Angle Stack | 13.67 ft in (4164 mm) |
| Turning Radius | 7.92 ft in (2411 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 8999.27 lb (4082 kg) |
| Lift Speed | 118 ft/min (35.97 m/min) |
| Lower Speed | 94 ft/min (28.66 m/min) |
Engine
| Engine Make | Hyster |
| Engine Model | J90XN |
| Power | 19.7 hp (14.7 kw) |
Operational
| Auxiliary Hydraulic Flow | 15.9 gal/min (60 L/min) |
| Operating Weight | 11389.1 lb (5166 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.7 mph (17.2 km/h) |
| Drawbar Pull | 4025 lb (1825.8 kg) |
| Operating Voltage | 80 V |
| Front Tire Size | 250 x 15 20 Ply |
| Rear Tire Size | 7.00 x 12 16 Ply |
| Axle Load - Front | 8911.1 lb (4042 kg) |
| Axle Load - Rear | 7870.6 lb (3570 kg) |
Hydraulic
| Relief Valve Pressure | 2250 psi (15513.2 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Spring Applied |
