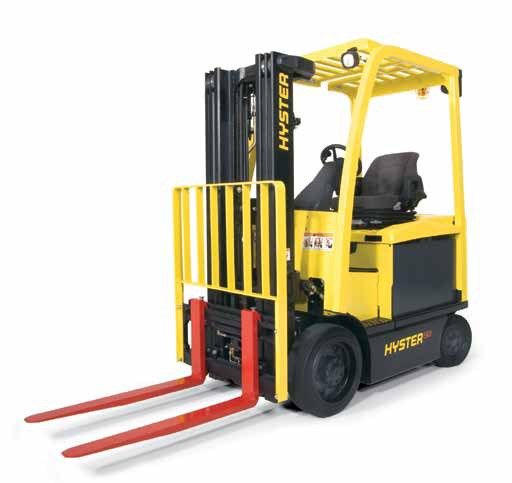

Hyster E65XN
Contents:
Dimensions
| Length To Fork Face | 7.5 ft in (2285 mm) |
| Overall Width | 3.64 ft in (1108 mm) |
| Overall Height - Mast Lowered | 6.85 ft in (2085 mm) |
| Wheelbase | 4.8 ft in (1463 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Height To Top Of Overhead Guard | 7.38 ft in (2248 mm) |
| Front Tread Range | 35.63 in (905 mm) |
| Gradeability | 31 % |
| Rear Tread Range | 36.03 in (915 mm) |
| Right Angle Stack | 11.91 ft in (3629 mm) |
| Turning Radius | 6.59 ft in (2008 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 6499.23 lb (2948 kg) |
| Lift Speed | 93 ft/min (28.35 m/min) |
| Lower Speed | 91 ft/min (27.74 m/min) |
Engine
| Engine Make | Hyster |
| Engine Model | E65XN |
| Power | 24.7 hp (18.5 kw) |
Operational
| Auxiliary Hydraulic Flow | 10.6 gal/min (40 L/min) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17 km/h) |
| Drawbar Pull | 3335 lb (1512.8 kg) |
| Operating Voltage | 36 V |
| Front Tire Size | 21 x 8 x 15 |
| Rear Tire Size | 16 x 6 x 10.5 |
| Axle Load - Front | 4640.8 lb (2105 kg) |
| Axle Load - Rear | 6852 lb (3108 kg) |
Hydraulic
| Relief Valve Pressure | 2250 psi (15513.2 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
