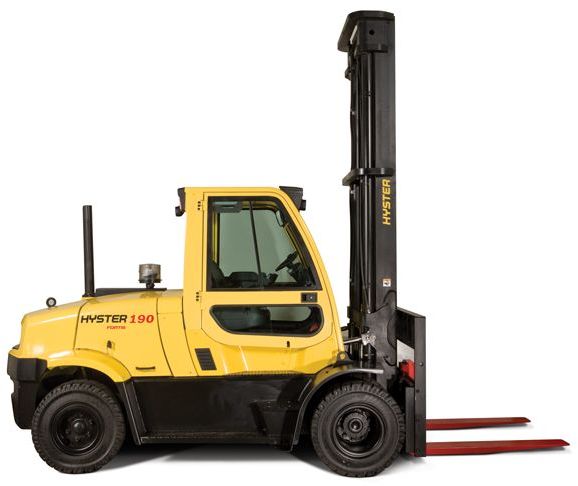

Hyster H190FT
Contents:
Dimensions
| Length To Fork Face | 12.99 ft in (3958 mm) |
| Overall Width | 7.35 ft in (2239 mm) |
| Overall Height - Mast Lowered | 13 ft in (3962 mm) |
| Wheelbase | 8.04 ft in (2450 mm) |
| Ground Clearance | 9.97 in (253 mm) |
| Height To Top Of Overhead Guard | 8.31 ft in (2531 mm) |
| Gradeability | 29 % |
| Right Angle Stack | 14.19 ft in (4323 mm) |
| Track Width Front | 6.58 ft in (2003 mm) |
| Track Width Rear | 5.04 ft in (1535 mm) |
| Turning Radius | 12.22 ft in (3723 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 9 degrees |
| Load Capacity | 17636.98 lb (8000 kg) |
| Lift Speed | 67 ft/min (20.43 m/min) |
| Lower Speed | 73 ft/min (22.26 m/min) |
| Load Center | 23.63 in (600 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Power | 74 hp (55.2 kw) |
| Torque | 227 lb ft (307.8 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 230 cu in (3.8 L) |
| Torque Measured @ | 1400 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 25858.1 lb (11729 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13 mph (21 km/h) |
| Drawbar Pull | 12000 lb (5443.2 kg) |
| Fuel Capacity | 19.7 gal (74.6 L) |
| Front Tire Size | 8.25 X 15 14PR |
| Rear Tire Size | 8.25 X 15 14PR |
| Hydraulic Tank | 19 gal (72 L) |
| Axle Load - Front | 11693 lb (5303.9 kg) |
| Axle Load - Rear | 14162 lb (6423.8 kg) |
Brakes
| Service Brake | Foot/Hydraulic |
| Parking Brake | Hand/Mechanical |
