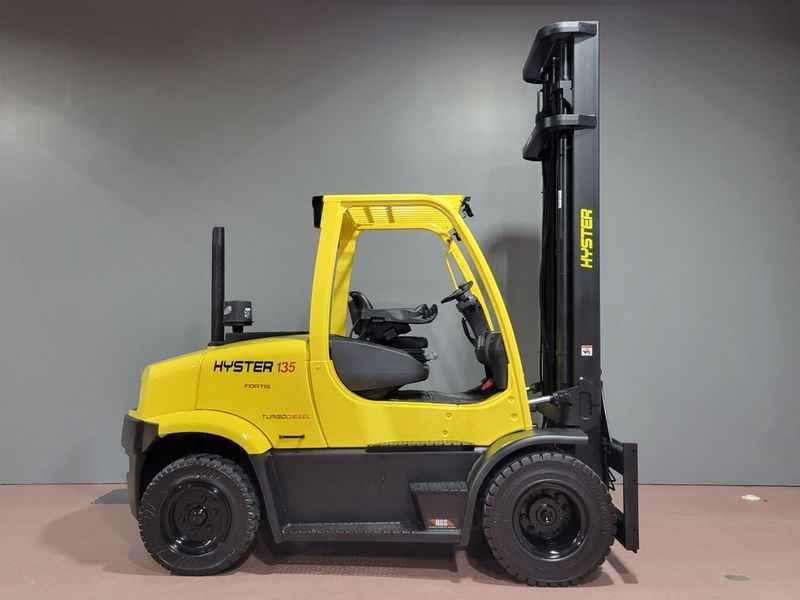

Hyster H135FT LP
Contents:
Dimensions
| Length To Fork Face | 11.83 ft in (3604 mm) |
| Overall Width | 6.84 ft in (2082 mm) |
| Overall Height - Mast Lowered | 12.28 ft in (3740 mm) |
| Wheelbase | 7.34 ft in (2235 mm) |
| Ground Clearance | 9.97 in (253 mm) |
| Height To Top Of Overhead Guard | 8.31 ft in (2531 mm) |
| Max Fork Height | 17.72 ft in (5400 mm) |
| Gradeability | 30 % |
| Right Angle Stack | 12.87 ft in (3921 mm) |
| Track Width Front | 6.06 ft in (1846 mm) |
| Track Width Rear | 5.04 ft in (1535 mm) |
| Turning Radius | 10.9 ft in (3320 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Load Capacity | 13227.74 lb (6000 kg) |
| Lift Speed | 106 ft/min (32.31 m/min) |
| Load Center | 24.02 in (610 mm) |
| Lower Speed | 104 ft/min (31.7 m/min) |
| Max Fork Spread | 73.86 in (1876 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | GM 4.3L |
| Power | 96 hp (71.6 kw) |
| Torque | 210 lb ft (284.8 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 263 cu in (4.4 L) |
| Torque Measured @ | 2400 rpm |
| Fuel Type | LP |
Operational
| Operating Weight | 19660 lb (8917.7 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14.3 mph (23.1 km/h) |
| Drawbar Pull | 9514 lb (4315.5 kg) |
| Hydraulic System Relief Valve Pressure | 2250 psi (15513.2 kPa) |
| Hydraulic Tank | 18.9 gal (71.6 L) |
| Axle Load - Front | 9457 lb (4289.7 kg) |
| Axle Load - Rear | 10203 lb (4628.1 kg) |
