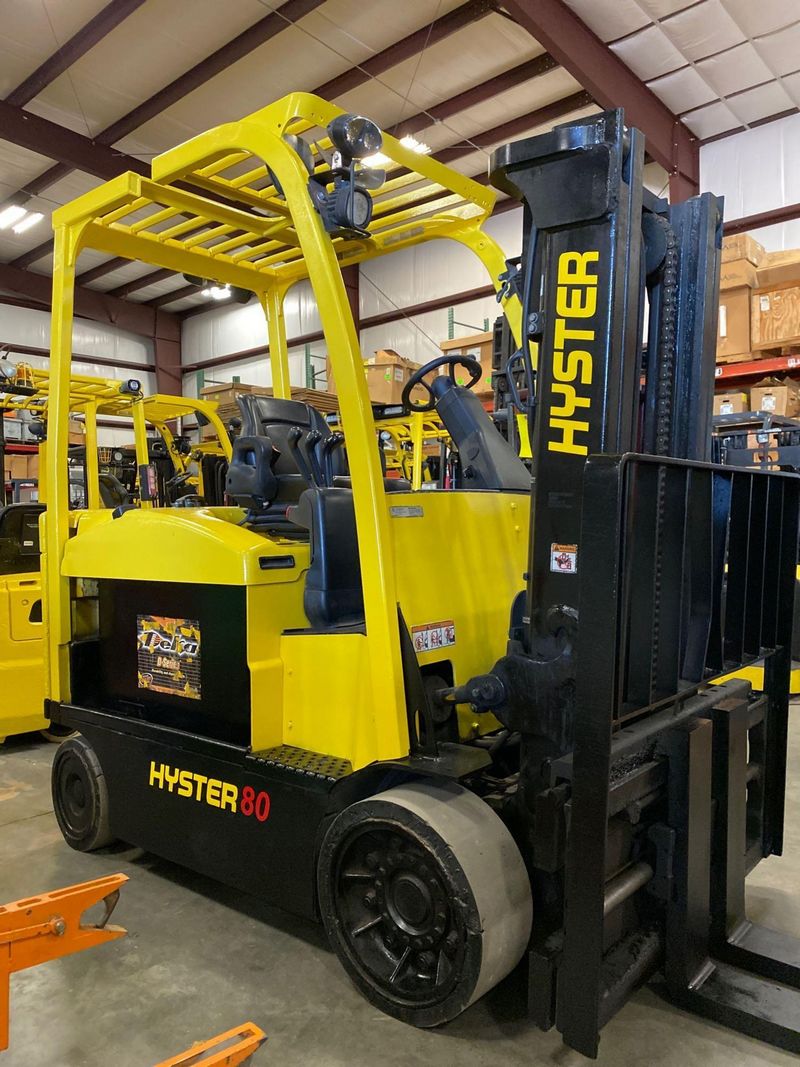

Hyster E80XN
Contents:
Dimensions
| Length To Fork Face | 8.05 ft in (2451 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2134 mm) |
| Wheelbase | 5.17 ft in (1574 mm) |
| Ground Clearance | 3.78 in (96 mm) |
| Height To Top Of Overhead Guard | 7.84 ft in (2388 mm) |
| Max Fork Height | 1.07 ft in (324 mm) |
| Front Tread Range | 37.05 in (941 mm) |
| Gradeability | 14.1 % |
| Rear Tread Range | 40.99 in (1041 mm) |
| Right Angle Stack | 12.57 ft in (3831 mm) |
| Turning Radius | 7.11 ft in (2165 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Capacity | 8000.58 lb (3629 kg) |
| Max Fork Spread | 127.25 in (3232 mm) |
| Lower Speed | 94 ft/min (28.66 m/min) |
| Lift Speed | 94 ft/min (28.66 m/min) |
| Load Center | 24.02 in (610 mm) |
Engine
| Engine Make | Hyster |
| Engine Model | E80XN |
Operational
| Operating Weight | 11069.5 lb (5021 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18 km/h) |
| Drawbar Pull | 3327 lb (1509.2 kg) |
| Front Tire Size | 22 x 9 x 16 |
| Rear Tire Size | 18 x 6 x 12.1 |
| Axle Load - Front | 6728 lb (3051.8 kg) |
| Axle Load - Rear | 9141 lb (4146.3 kg) |
